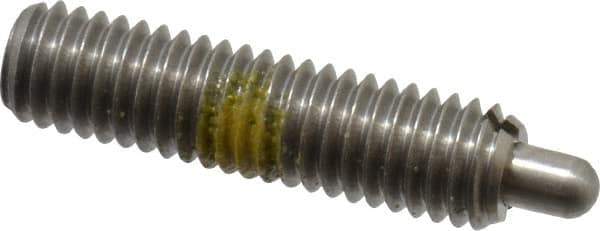

Vlier - 10-32, 3/4" Thread Length, 1/8" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.091 - 0.092" Max Plunger Diam, 3/4" Plunger Length, 2.9 Lb Init End Force, 11.1 Lb Final End Force
Item #: 62117205
Brand: Vlier
Model #: SSS52P
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 10-32 |
| Thread Length (Inch) | 3/4 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0920 |
| Plunger Projection (Inch) | 1/8 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.0910 |
| Body Length (Inch) | 3/4 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 3/4 |
| Final End Force (Lb.) | 11.10 |
| Initial End Force (Lb.) | 2.90 |
