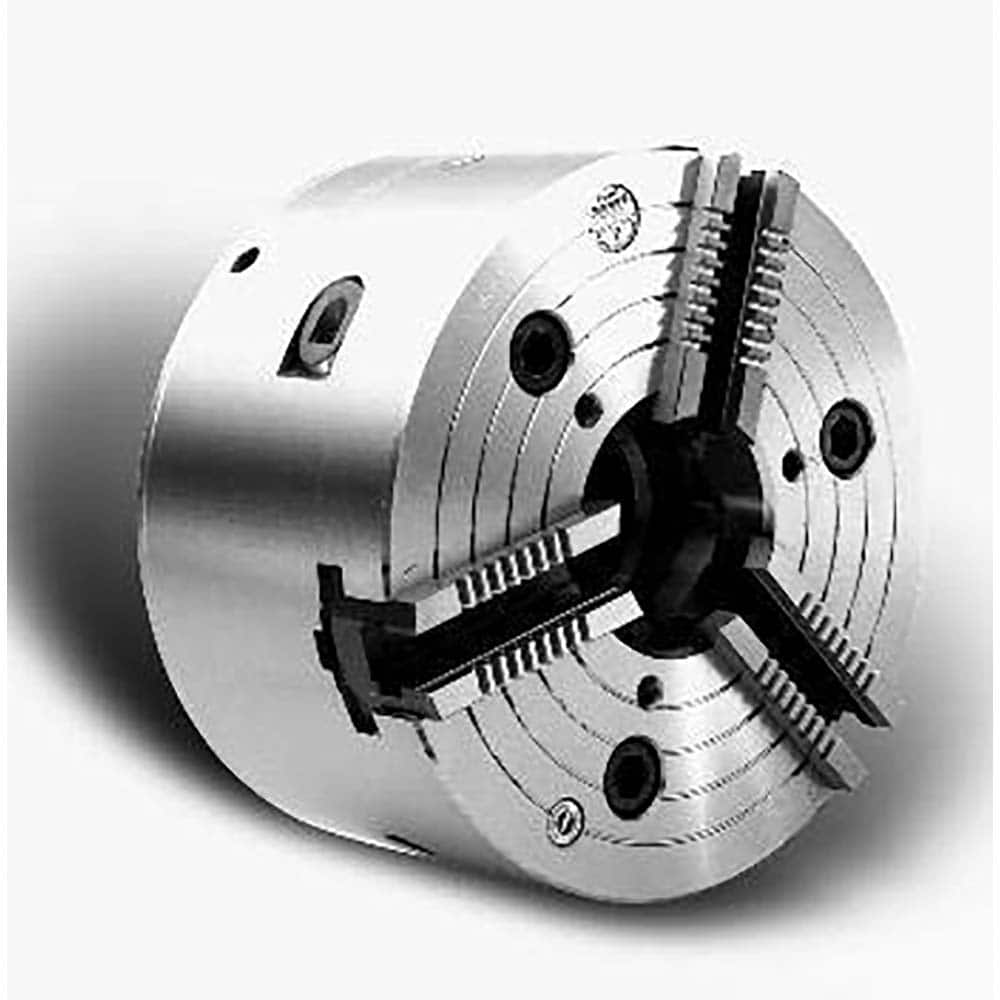

Pratt Burnerd America - 3 Jaw 265mm Diam A2-8 Lathe Chuck
Item #: 61876421
Brand: Pratt Burnerd America
Model #: 9171-52623
Product Specifications
| Chuck Diameter (mm) | 264.92 |
| Chuck Diameter (Decimal Inch) | 10.4300 |
| Number of Jaws | 3 |
| Mount | A2-8 |
| Through-Hole Diameter (mm) | 76.96 |
| Through-Hole Diameter (Decimal Inch) | 3.0300 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Jaw Stroke Diameter (mm) | 4.06 |
| Jaw Stroke Diameter (Decimal Inch) | 0.1600 |
| Piston Stroke Length (mm) | 18.54 |
| Piston Stroke Length (Decimal Inch) | 0.7300 |
| Maximum Static Gripping Force (kN) | 88.00 |
| Maximum Static Gripping Force (lbf) | 19800.00 |
| Maximum RPM | 5000 |
