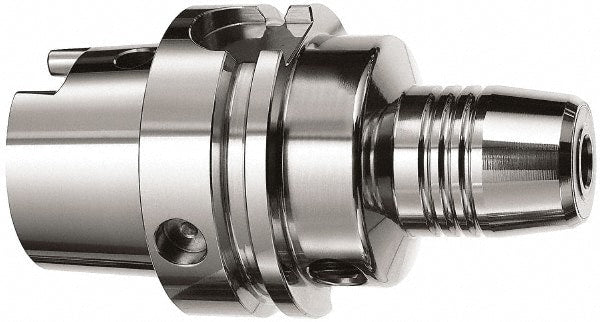

Hydraulic Tool Chuck: HSK63A Taper Shank, 1/2" Hole
Item #: 67203711
Brand: Accupro
Model #: 1527342
Product Specifications
| Shank Type | Taper |
| Connection Size | HSK63A |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter | 1-3/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 27.50 |
| Projection (mm) | 85.000 |
| Projection | 3-11/32 |
| Clamping Depth (mm) | 46.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.6299 |
| Body Diameter (Decimal Inch) | 1.9685 |
| Additional Information | Replaces SKU 56509672 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Connection Size | HSK63A |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter | 1-3/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 27.50 |
| Projection (mm) | 85.000 |
| Projection | 3-11/32 |
| Clamping Depth (mm) | 46.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 5.6299 |
| Body Diameter (Decimal Inch) | 1.9685 |
| Additional Information | Replaces SKU 56509672 |
| UNSPSC Code | 27112800 |
| MSC Part # | 67203711 |
| Mfr Part # | 1527342 |
