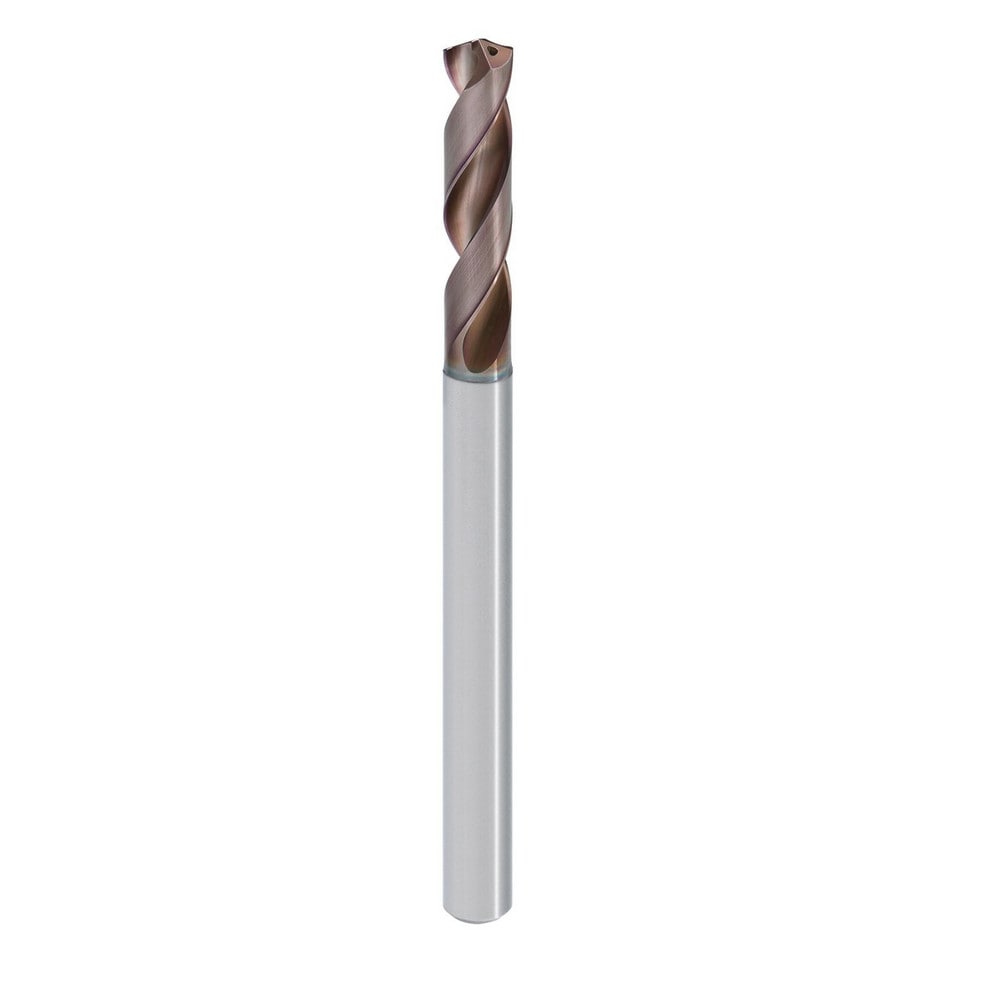

Extra Length Drill Bit: 0.2656", 140 °, Carbide
Item #: 11768371
Brand: Mitsubishi
Model #: 10546734
Product Specifications
| Drill Bit Size (Inch) | 17/64 |
| Drill Bit Size (mm) | 6.75 |
| Overall Length (mm) | 357.2300 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 301.19 |
| Point Type | X-Thinning |
| Series | MVS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Deep Hole Drilling; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Aluminum; Brass; Carbon Steel; Iron; Aluminum Alloy; Steel; High Strength Bronze; Tempered Steel; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Drill Point Length (mm) | 1.22 |
| Drill Point Length (Decimal Inch) | 0.0480 |
| Overall Length (Decimal Inch) | 14.0640 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (Decimal Inch) | 2.0870 |
| Shank Length (mm) | 53.010 |
| Flute Length (Decimal Inch) | 11.8580 |
| Flute By Diameter Ratio | 40xD |
| Maximum Drilling Depth (Decimal Inch) | 10.6710 |
| Maximum Drilling Depth (mm) | 271.04 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
