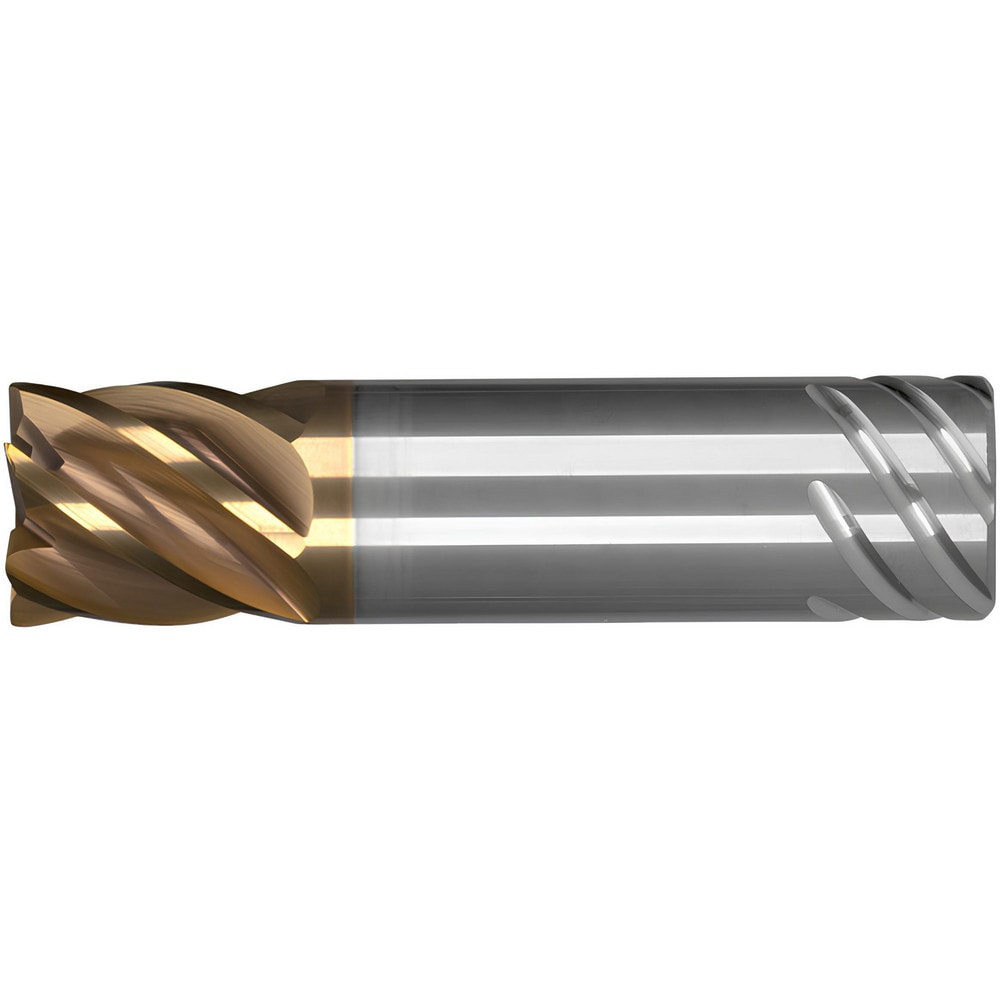

Corner Radius End Mill: 1-1/4" Dia, 6" LOC, 0.1900" Radius, 6 Flute, Solid Carbide
Item #: 67272187
Brand: Kennametal
Model #: 7077126
Product Specifications
| Mill Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 6 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 9 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.1900 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 9.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 6.0000 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | HA3A |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC-HSK Form A; HPMC High PerFormance Milling Chucks-CV Form B/AD; Hydraulic Chuck Standard Line Inch KM63XMZ; Hydraulic Chuck Standard Line; HC-CV Form AD |
| Helix Style | High |
| Mill Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 6 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 9 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.1900 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 9.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 6.0000 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | HA3A |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC-HSK Form A; HPMC High PerFormance Milling Chucks-CV Form B/AD; Hydraulic Chuck Standard Line Inch KM63XMZ; Hydraulic Chuck Standard Line; HC-CV Form AD |
| Helix Style | High |
| MSC Part # | 67272187 |
| Mfr Part # | 7077126 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
