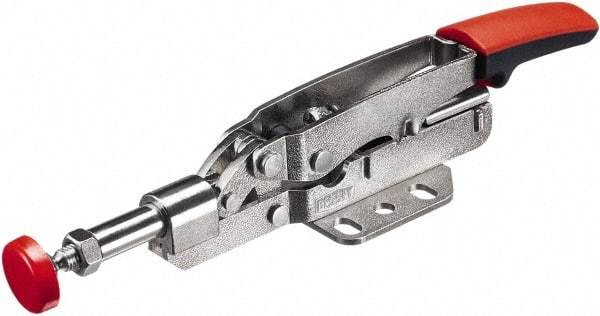

Bessey - 450 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.33" Plunger Diam, Straight Handle
Item #: 61725990
Brand: Bessey
Model #: STC-IHH15
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 450.00 |
| Plunger Travel (Decimal Inch) | 0.3750 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M5 |
| Plunger Centerline Height (Decimal Inch) | 0.8250 |
| Plunger Diameter (Decimal Inch) | 0.3300 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 7.1300 |
| Overall Height (Decimal Inch) | 1.2600 |
| Base Length (Decimal Inch) | 1.7700 |
| Base Width (Decimal Inch) | 1.6500 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.5000 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Includes | Pressure Pad Cap |
