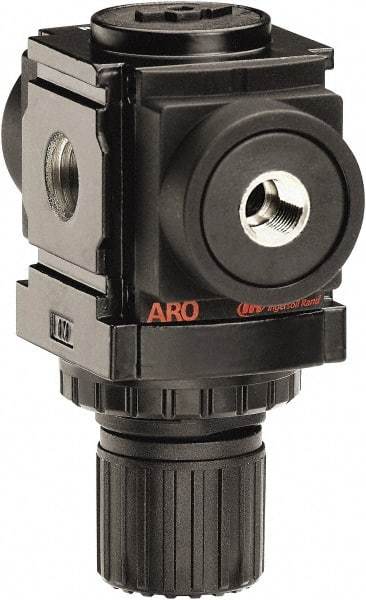

ARO/Ingersoll-Rand - 1/4 NPT Port, 59 CFM, Aluminum Miniature Regulator - 0 to 140 psi Range, 250 Max psi Supply Pressure, 1/8" Gauge Port Thread, 2.913" Wide x 3-9/16" High
Item #: 61691572
Brand: ARO/Ingersoll-Rand
Model #: R37121-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Miniature |
| Port Size NPT | 1/4 |
| Range | 0 - 140 |
| Maximum Supply Pressure (psi) | 250 |
| Pressure Gauge Included | No |
| Air Flow (CFM) | 59.0 |
| Maximum Temperature (F) | 140 |
| Width (Decimal Inch) | 2.9130 |
| Height (Inch) | 3.563 |
| Material | Aluminum |
| Gauge Port Thread Size | 1/8 |
| Minimum Temperature (F) | 23 |
| Modular Connection | Yes |
| Fluid Type | Compressed Air |
| Relief Function | Relieving |
| Series Size | 1000 |
