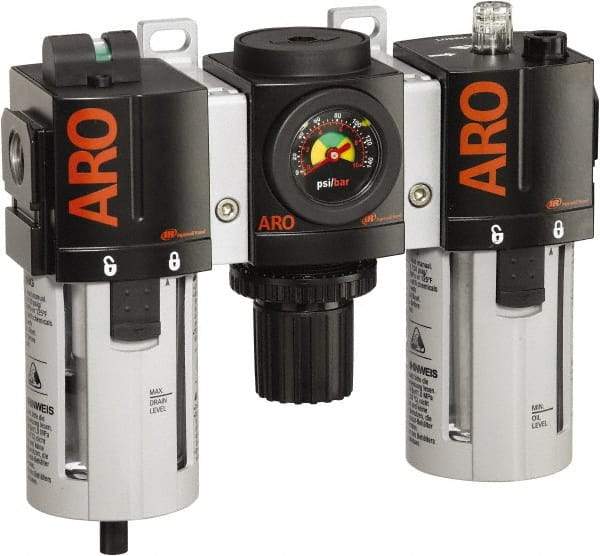

ARO/Ingersoll-Rand - 1/2" NPT Port Standard 3 Piece Filter-Regulator-Lubricator FRL Unit - Polycarbonate Bowl, 150 SCFM, 150 Max psi, 7.7" High x 8.693" Long, Automatic Drain
Item #: 61684288
Brand: ARO/Ingersoll-Rand
Model #: C38341-801
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Configuration | 3 Pc. Filter-Regulator-Lubricator |
| Body Type | Standard |
| Port Size NPT | 1/2 |
| Maximum Supply Pressure (psi) | 150.00 |
| Height (Inch) | 7.7 |
| Width (Decimal Inch) | 3.5350 |
| Bowl Material | Polycarbonate |
| Standard Cubic Feet Per Minute | 150.00 |
| Includes Sight Glass | No |
| Bowl Guard | Yes |
| Filter Bowl Capacity (oz.) | 2.3 |
| Drain Type | Automatic |
| Gauge Port Size (Inch) | 1/8 |
| Pressure Gauge Included | Yes |
| Minimum Temperature (F) | 23 |
| Maximum Temperature (F) | 125 |
| Micron Rating | 5 |
| Series | 2000 |
| Range | 0 - 140 |
| Modular Connection | Yes |
| Material | Aluminum |
