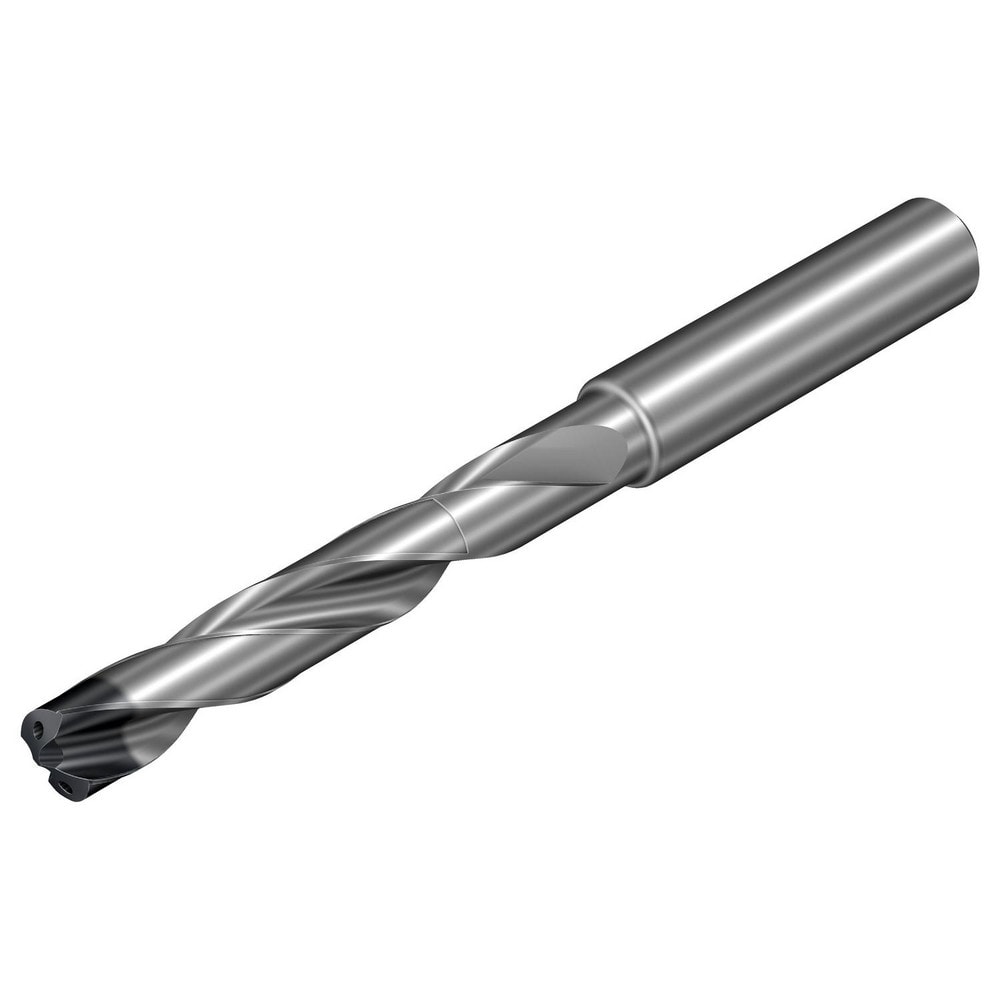

Screw Machine Length Drill Bit: 3.70 mm Dia, 140 deg Point, Solid Carbide
Item #: 01160662
Brand: Sandvik Coromant
Model #: 8420829
Product Specifications
| Drill Bit Size (mm) | 3.70 |
| Drill Bit Size (Decimal Inch) | 0.1457 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlSiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4410 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Proprietary Coating/Finish | TiAlSiN |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.4634 |
| Maximum Drilling Depth (mm) | 11.77 |
| Drill Point Length (mm) | 0.67 |
| Drill Point Length (Decimal Inch) | 0.0265 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Drill Bit Grade | S2BM |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
