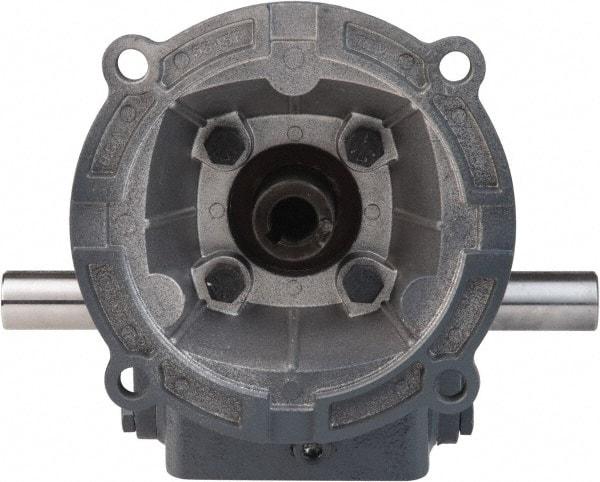

Boston Gear - 3 Centerline Distance, 50:1, 35 RPM Output, 1.45 Input Horsepower, 2,016 Lbs. Max Torque, Speed Reducer - Part No. F730-50-B5-H, 1-1/4" Shaft Diam, Double Shaft Left & Right, 7/8" Bore, 8.88" High, 56C NEMA
Item #: 61571485
Brand: Boston Gear
Model #: 60719
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.000 |
| Ratio | 50:1 |
| NEMA Size | 56C |
| PartNo | F730-50-B5-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 8.88 |
| Maximum Torque Inch/Lbs (Pounds) | 2016.00 |
| Maximum Input Horsepower | 1.45 |
| Output RPM at 1750 Input | 35.0 |
