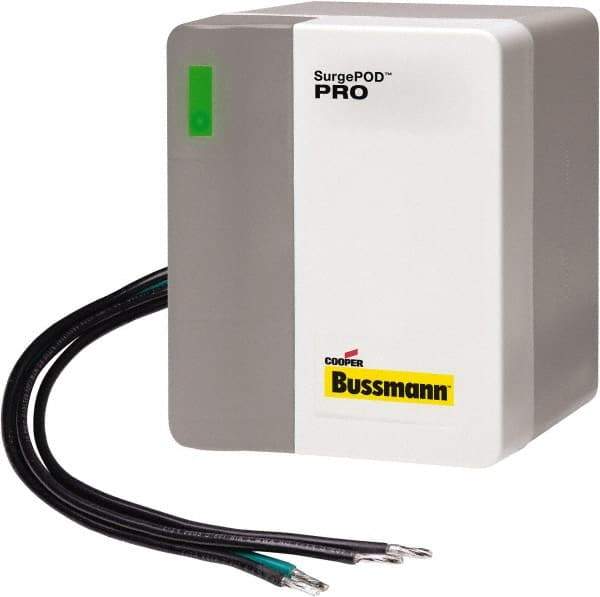

Cooper Bussmann - 3 Pole, 3 Phase, 10 kA Nominal Current, 4-1/8 Inch Long x 3-3/8 Inch Wide x 4-1/16 Inch Deep, Hardwired Surge Protector - Panel Mount, 4X, 200 kA Short Circuit Current, 240 V, 320 VAC Operating Voltage, 40 kA Surge Protection
Item #: 61505251
Brand: Cooper Bussmann
Model #: SPP40SP3240DLG
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Voltage | 240 V |
| Nominal Discharge Current (kA) | 10.00 |
| Maximum Continuing Operating Voltage | 320 VAC |
| Short Circuit Current (kA) | 200 |
| Surge Protection Capacity (kA) | 40 |
| Mounting Type | Panel Mount |
| Number of Wires | 3 |
| Wiring Configuration | Delta |
| Overall Length (Inch) | 4-1/8 |
| Overall Width (Inch) | 3-3/8 |
| Overall Depth (Inch) | 4-1/16 |
| NEMA Enclosure Rating | 4X |
| Standards Met | cULus; RoHS Compliant; UL 1449; UL Listed |
| Number of Phases | 3 |
| Number of Poles | 3 |
