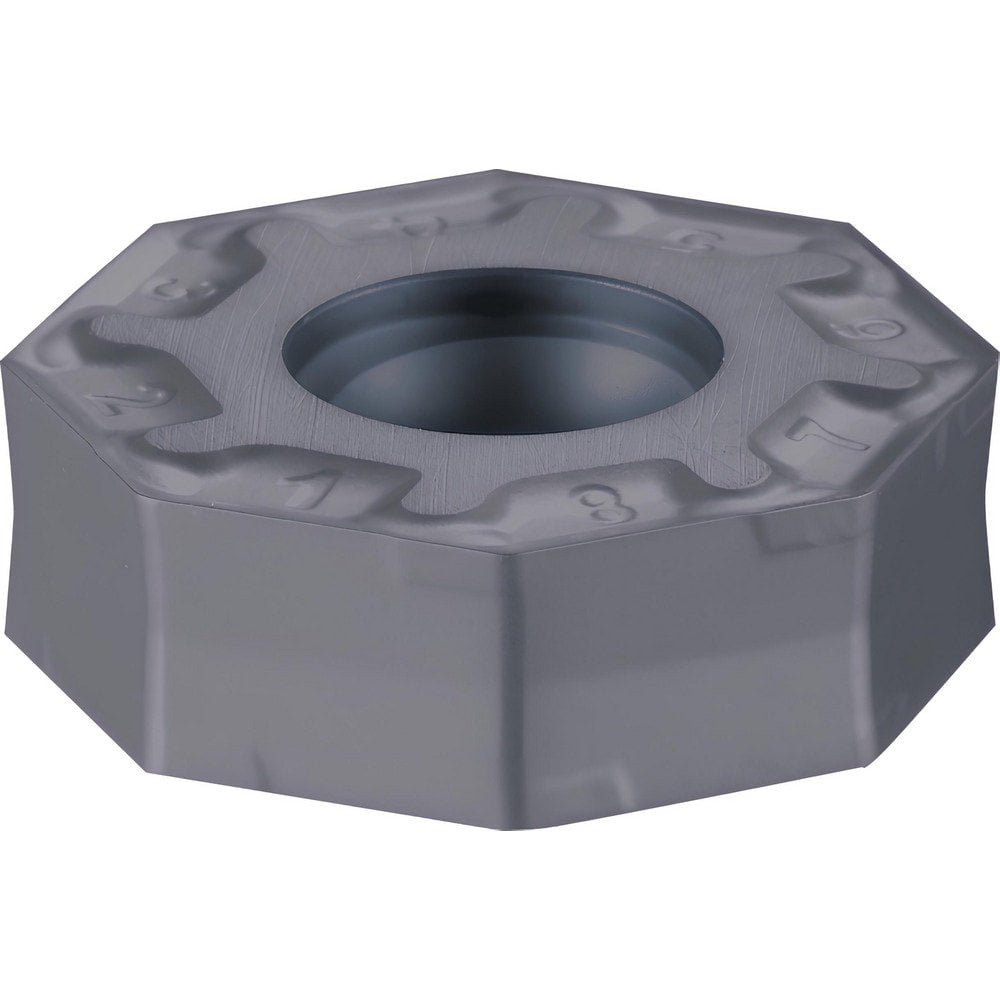

Milling Insert: OZKU060508ER-SM XC5040, Solid Carbide
Item #: 33626532
Brand: OSG
Model #: 7816085
Product Specifications
| Insert Style | OZKU |
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | XC5040 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Number Of Cutting Edges | 16 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2228 |
| Thickness (mm) | 5.70 |
| Coating/Finish | TiB2; TiN |
| Relief Angle | 3.00 |
| Insert Size Code | 060508 |
| Length (Inch) | 43/64 |
| Inscribed Circle (Inch) | 43/64 |
| Inscribed Circle (Decimal Inch) | 0.6719 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Series | 78PAO |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | OZKU060508ER-SM |
| Iso Code | OZKU060508ER-SM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7816085 |
| Cutter Series Compatibility | 78PAO |
| Chip Breaker | SM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 135 |
| Length (mm) | 2.00 |
| Width (Decimal Inch - 4 Decimals) | 0.6719 |
| Width (mm - 2 Decimals) | 5.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6719 |
