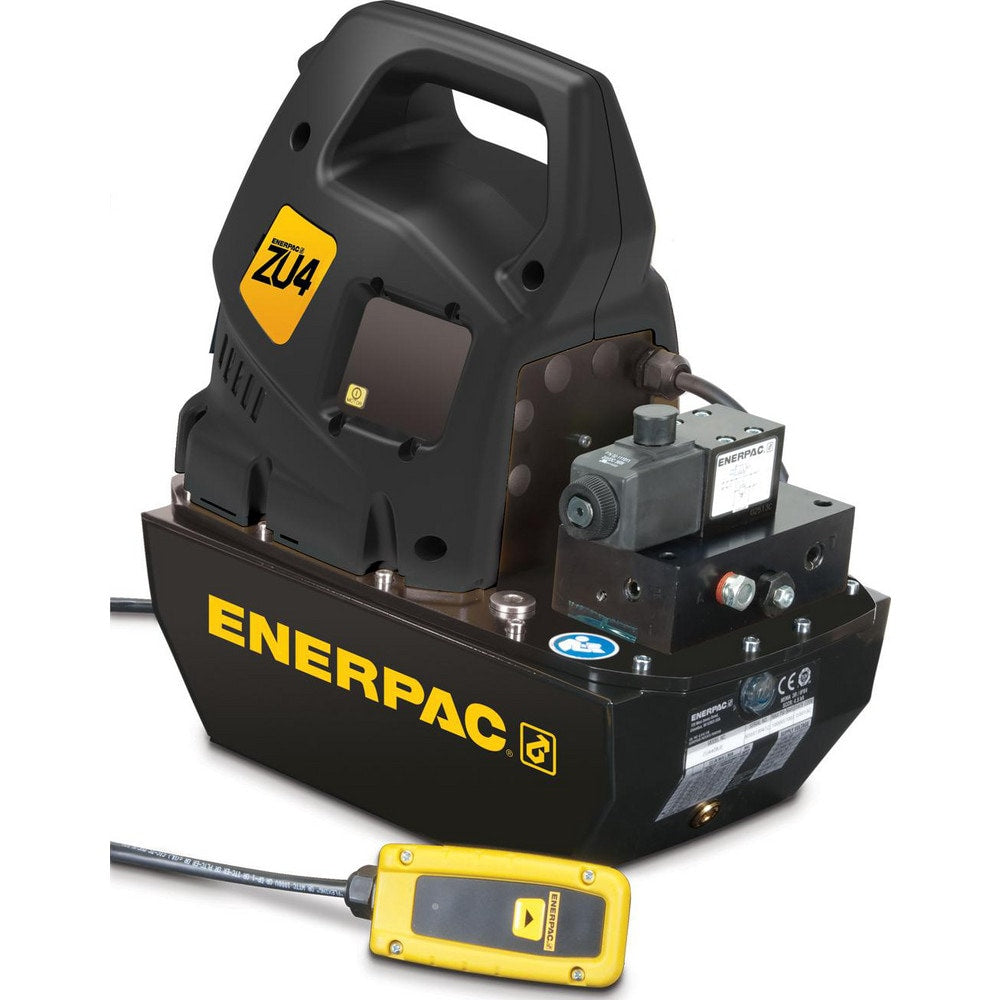

Power Hydraulic Pumps & Jacks; Type: Electric Hydraulic Pump; 1st Stage Pressure Rating: 10000; 2nd Stage Pressure Rating: 10000; Pressure Rating (psi): 10000; Oil Capacity: 1 gal; Actuation: Single Acting; Cylinder Operating Function: Retract, Advance
Item #: 67236182
Brand: Enerpac
Model #: ZU4104DB
Product Specifications
| Type | Electric Hydraulic Pump |
| 1st Stage Pressure Rating | 10000 |
| 2nd Stage Pressure Rating | 10000 |
| Pressure Rating (psi) | 10000 |
| Oil Capacity | 1 gal |
| Actuation | Single Acting |
| Cylinder Operating Function | Retract; Advance |
| Valve Type | Three-Way; Two-Position |
| Adjustable Relief Valve | Yes |
| Includes | LCD Display |
| Overall Length | 25.00 |
| Overall Width | 13 |
| Overall Height | 20.5 in |
| Usable Oil Capacity | 1 gal |
| Additional Information | Sound Level: 85 to 90 dBA; Series: ZU; Thread: 1/2 in NPTF; Motor Hertz: 50/60 Hz; Duty Cycle: Intermittent; Motor Phase: 1 ph; Pump Control: Pendant; Operation Type: Dump Solenoid Valve with Pendant |
| Resovoir Capacity (Cu.In.) | 277 |
| Used With Cylinders | Single Acting |
| Horse Power | 1.7 hp |
| UNSPSC Code | 27121800 |
| Type | Electric Hydraulic Pump |
| 1st Stage Pressure Rating | 10000 |
| 2nd Stage Pressure Rating | 10000 |
| Pressure Rating (psi) | 10000 |
| Oil Capacity | 1 gal |
| Actuation | Single Acting |
| Cylinder Operating Function | Retract; Advance |
| Valve Type | Three-Way; Two-Position |
| Adjustable Relief Valve | Yes |
| Includes | LCD Display |
| Overall Length | 25.00 |
| Overall Width | 13 |
| Overall Height | 20.5 in |
| Usable Oil Capacity | 1 gal |
| Additional Information | Sound Level: 85 to 90 dBA; Series: ZU; Thread: 1/2 in NPTF; Motor Hertz: 50/60 Hz; Duty Cycle: Intermittent; Motor Phase: 1 ph; Pump Control: Pendant; Operation Type: Dump Solenoid Valve with Pendant |
| Resovoir Capacity (Cu.In.) | 277 |
| Used With Cylinders | Single Acting |
| Horse Power | 1.7 hp |
| UNSPSC Code | 27121800 |
| MSC Part # | 67236182 |
| Mfr Part # | ZU4104DB |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
