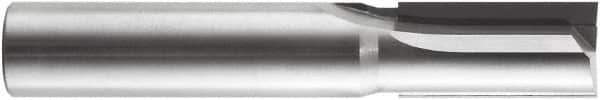

RobbJack - 1/4" Diam, 1/4" Shank Diam, 5/8" Length of Cut, 2 Flute Square End Straight Router Bit - 2" Overall Length, Right Hand Cut, Solid Carbide
Item #: 61244521
Brand: RobbJack
Model #: PCD-203-08-CF
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 6.35 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 15.88 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Material Application | Aluminum; Brass; Composite; Copper; Magnesium; Plastics |
| Material | Solid Carbide |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 50.80 |
| Overall Length (Inch) | 2 |
| Router Style | Straight |
| Piloted | No |
| Flute Type | Straight |
