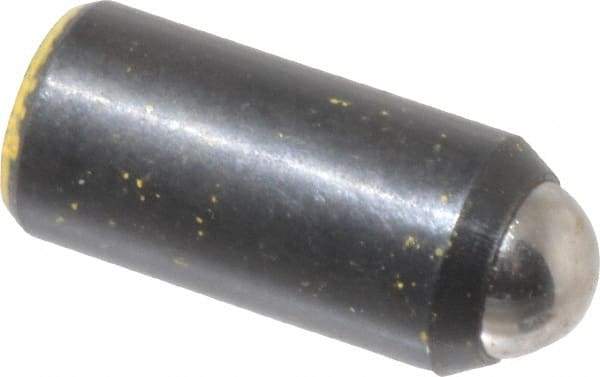

Gibraltar - 0.525" Body Length x 1/4" Body Diam, 6 Lb Init to 13 Lb Final End Force, Steel Press Fit Ball Plunger - 3/16" Ball Diam, 0.07" Max Ball Reach, +0.0010; +0.0020" Tolerance
Item #: 60931896
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Length (Decimal Inch) | 0.5250 |
| Body Material | Steel |
| Ball Material | Stainless Steel |
| Flange | No |
| Maximum Ball Reach (Decimal Inch) | 0.0700 |
| Initial End Force (Lb.) | 6.00 |
| Final End Force (Lb.) | 13.00 |
| Ball Diameter (Decimal Inch) | 0.1870 |
| Finish/Coating | Black Oxide |
| Tolerance (Decimal Inch) | +0.0010; +0.0020 |
| Locking Element | No |
