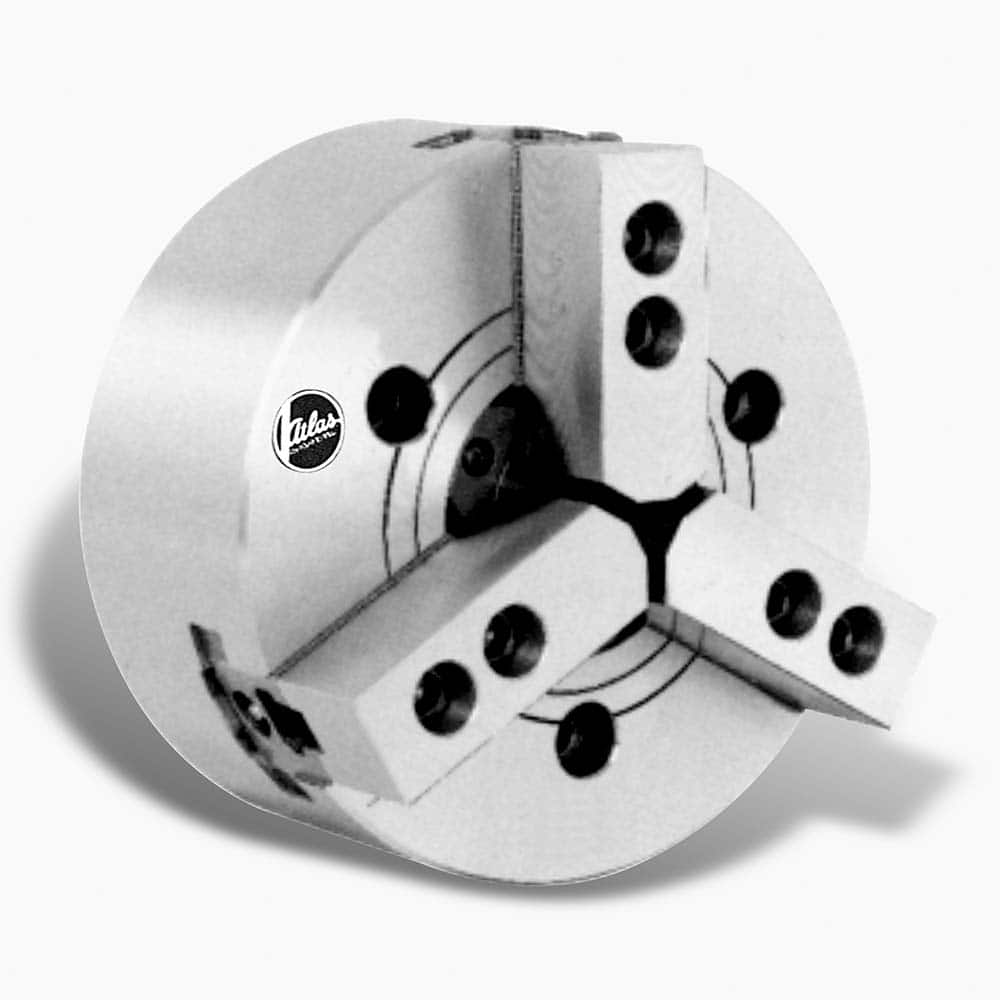

Atlas Workholding - 3 Jaw 8" Diam A-6 Lathe Chuck
Item #: 60703501
Brand: Atlas Workholding
Model #: ALS8-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 8.4600 |
| Number of Jaws | 3 |
| Mount | A-6 |
| Through-Hole Diameter (Decimal Inch) | 1.7710 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.7480 |
| Maximum Jaw Capacity (Decimal Inch) | 8.4600 |
| Jaw Stroke Diameter (Decimal Inch) | 0.9840 |
| Piston Stroke Length (Decimal Inch) | 0.7480 |
| Maximum Drawbar Pulling Force (lbf) | 9239.00 |
| Maximum Static Gripping Force (lbf) | 11016.00 |
| Maximum RPM | 3300 |
| Body Material | Steel |
