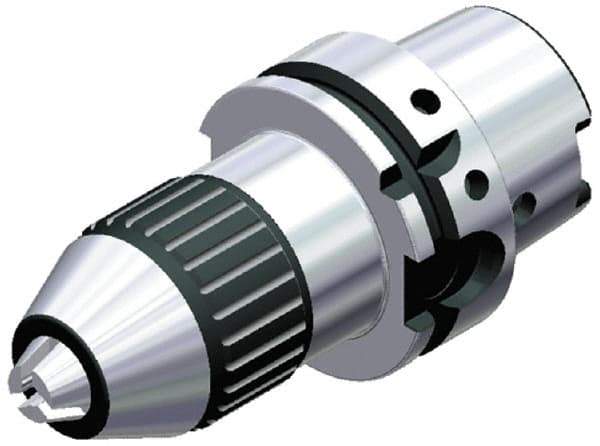

Kennametal - HSK100, 0.51 to 13mm Capacity, Tapered Mount Drill Chuck - Keyed, 50mm Sleeve Diam, 125mm Open Length
Item #: 60629870
Brand: Kennametal
Model #: 2637153
Exact Tooling IR#: 04
Features and Benefits
Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 13.00 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.5120 |
| Minimum Drill Chuck Capacity (mm) | 0.51 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0200 |
| Mount Type | Tapered Mount |
| Mounting Size | HSK100 |
| Key Style | Keyed |
| Material | Steel |
| Closed Length (mm) | 134.00 |
| Closed Length (Decimal Inch) | 5.2756 |
| Open Length (mm) | 125.00 |
| Sleeve Diameter (mm) | 50.00 |
