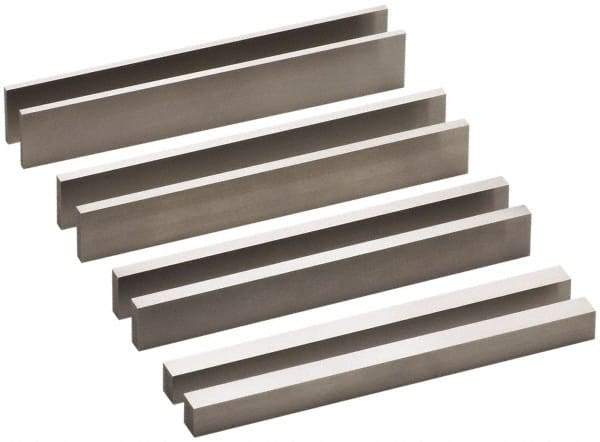

SPI - 8 Piece, 6 Inch Long Steel Parallel Set - 3/4 to 1-3/16 Inch High, 1/8 to 3/8 Inch Thick, 52-58 RC Hardness, Sold as 4 Pair
Item #: 60564267
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Parallelism (Decimal Inch) | 0.0001 |
| Length (Inch) | 6 |
| Minimum Height (Inch) | 3/4 |
| Maximum Height (Inch) | 1-3/16 |
| Minimum Thickness (Inch) | 1/8 |
| Maximum Thickness (Inch) | 3/8 |
| Material | Steel |
| Height (Inch) | 3/4; 1; 1-1/8; 1-3/16 |
| Accuracy (Decimal Inch) | 0.0002 |
| Hardness | 52-58 Rc |
| Number of Pieces | 8 |
| Sold As | 4 Pair |
| Additional Information | 6" Parallels Are Made From Hardened Steel & Ground On All Four Sides To Close Tolerances |
| Thickness x Height Dimension 1 | (1) Pair 1/4" x 1"; (1) Pair 1/8" x 1-13/16"; (1) Pair 3/16" x 1-1/8"; (1) Pair 3/8" x 3/8" |
| Includes | Case |
