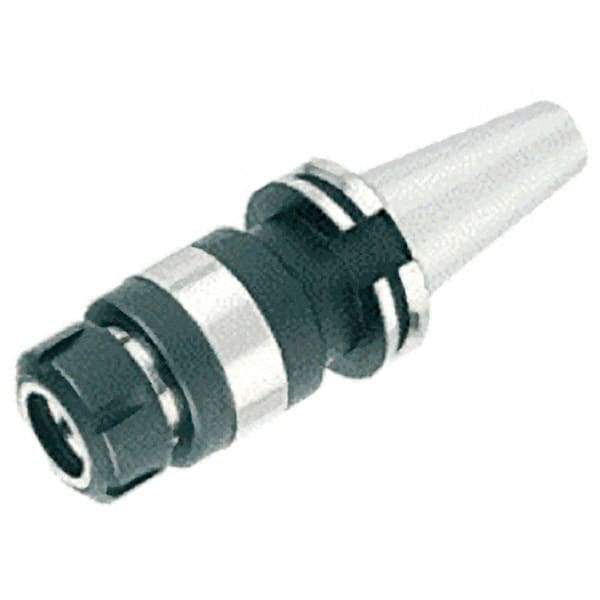

Iscar - CAT40 Taper Shank Tapping Chuck/Holder - 1/4 to 1-1/8" Tap Capacity, 5.148" Projection, Through Coolant
Item #: 60212230
Brand: Iscar
Model #: 4500069
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Minimum Tap Capacity (Decimal Inch) | 0.2500 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 1-1/8 |
| Maximum Tap Capacity (Decimal Inch) | 1.1250 |
| Projection (Decimal Inch) | 5.1480 |
| Quick Change | No |
| Minimum Collet Capacity (Decimal Inch) | 0.2500 |
| Minimum Collet Capacity (Inch) | 1/4 |
| Maximum Collet Capacity (Inch) | 1-1/8 |
| Maximum Collet Capacity (Decimal Inch) | 1.1250 |
| Collet System | ER Tap |
| Collet Series | ER 40 |
| Nose Diameter (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
