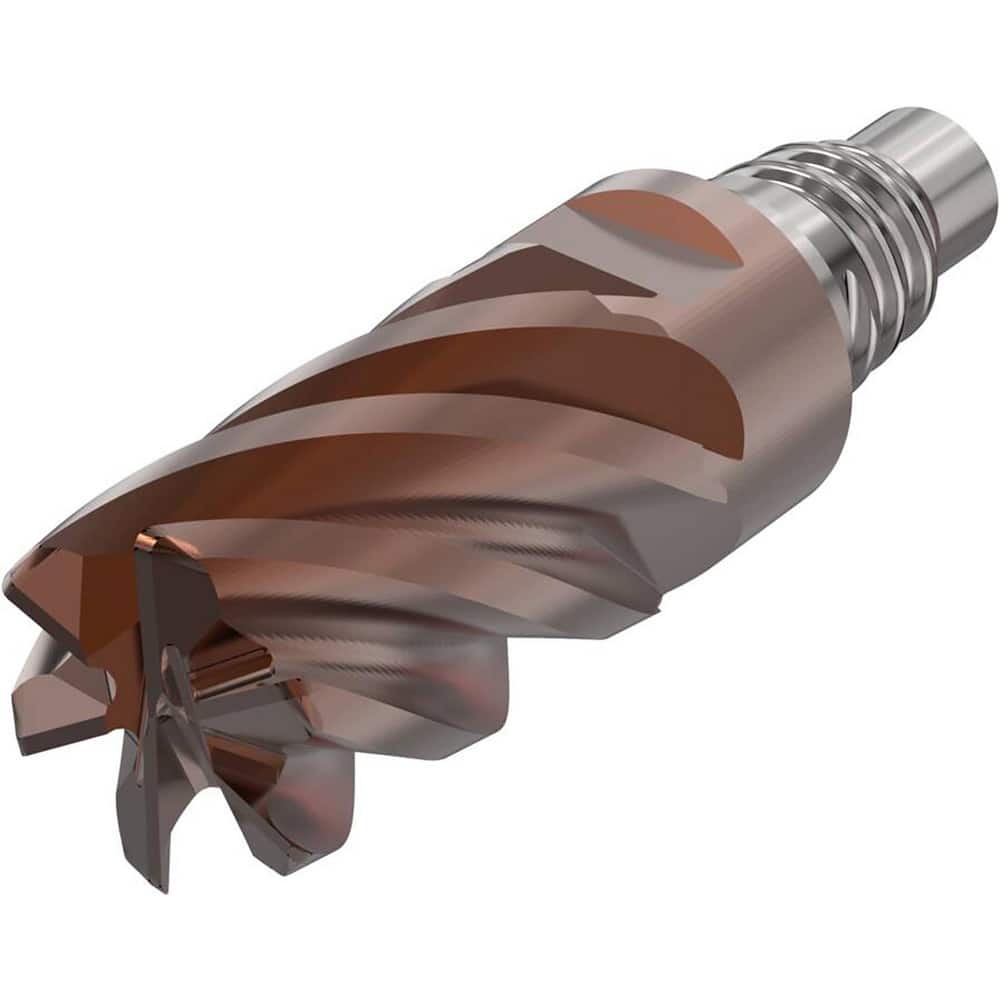

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 25.00; Mill Diameter (Decimal Inch): 0.9843; Length of Cut (mm): 37.5000; Connection Type: E25; Overall Length (mm): 73.5000; Centercutting: Yes; Corner Radius (mm): 4.00; Minimum Helix An
Item #: 60033297
Brand: Seco
Model #: 10138203
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Length of Cut (mm) | 37.5000 |
| Connection Type | E25 |
| Overall Length (mm) | 73.5000 |
| Centercutting | Yes |
| Corner Radius (mm) | 4.00 |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Flute Type | Helical |
| Series | XSE720 |
| Helix Angle | 38 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Number Of Flutes | 6 |
| Coating/Finish | HXT |
| End Mill Material | Solid Carbide |
| Coolant Through | No |
| Variable Helix | No |
| Variable Index | No |
