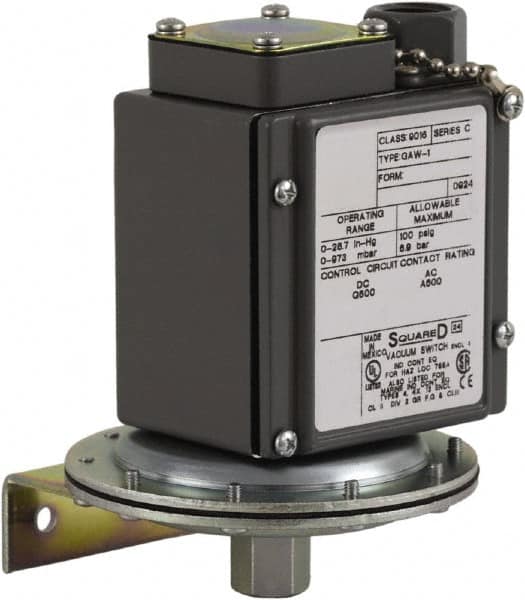

Square D - 4, 13 and 4X NEMA Rated, NC, SPDT, 28.7 inHg, Electromechanical Pressure and Level Switch
Item #: 59761205
Brand: Square D
Model #: 9016GAW1
Product Specifications
| Pressure Switch Type | Electromechanical |
| NEMA Rating | 4; 13; 4X |
| Maximum Pressure Setting | 28.7 inHg |
| Minimum Pressure Setting | 0 inHg |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (inHg) | 7.40 |
| Minimum Differential Pressure (inHg) | 1.30 |
| Voltage | 120 VAC; 125 VDC; 240 VAC; 250 VDC |
| Contact Form | NC; SPDT |
| Connector Size (Decimal Inch) | 0.2500 (Fluid Connection); 0.5000 (Conduit) |
| Terminal Type | Screw |
| Resistance Features | Shock Resistant; Vibration Resistant |
| For Use With | Hydraulic Systems; Pneumatic Systems |
| Standards Met | CSA File LR25490; UL 508; UL 698; UL Listed File E12158 CCN NKPZ & CCN NTHT |
| Amperage | 6 |
