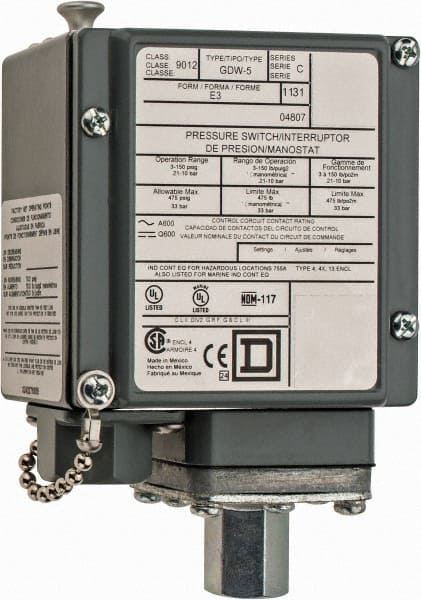

Square D - 4, 13 and 4X NEMA Rated, SPDT-DB, 3 to 150 psig, Electromechanical Pressure and Level Switch
Item #: 59761098
Brand: Square D
Model #: 9012GDW5E3
Product Specifications
| Pressure Switch Type | Electromechanical |
| NEMA Rating | 4; 13; 4X |
| Maximum Pressure Setting | 150 psig |
| Minimum Pressure Setting | 3 psig |
| Differential Pressure Type | Fixed |
| Maximum Differential Pressure (psi) | 6.00 |
| Voltage | 120 VAC; 125 VDC; 240 VAC; 250 VDC |
| Contact Form | SPDT-DB |
| Connector Size (Decimal Inch) | 0.2500 (Fluid Connection); 0.5000 (Conduit) |
| Terminal Type | Screw |
| Resistance Features | Shock Resistant; Vibration Resistant |
| For Use With | Hydraulic Systems; Pneumatic Systems |
| Standards Met | CE; CSA C22.2 No. 14; IEC 58-2-27; IEC 68-2-6; RoHS Compliant; UL 508 |
| Amperage | 6 |
