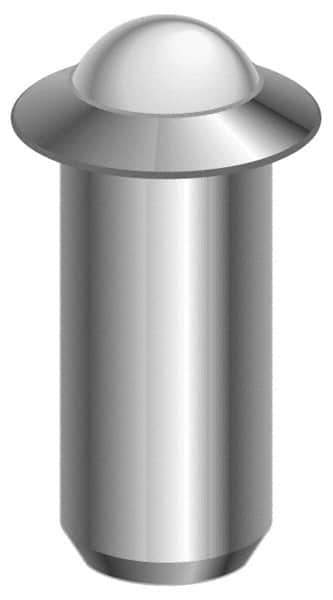

Gibraltar - 1.1" Body Length x 1/2" Body Diam, 8 Lb Init to 18 Lb Final End Force, Stainless Steel Press Fit Ball Plunger - 7/16" Ball Diam, 0.161" Max Ball Reach, 0.11" Flange Thickness
Item #: 59590521
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.5000 |
| Body Length (Decimal Inch) | 1.1000 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Flange | Yes |
| Maximum Ball Reach (Decimal Inch) | 0.1610 |
| Initial End Force (Lb.) | 8.00 |
| Final End Force (Lb.) | 18.00 |
| Length Under Flange (Decimal Inch) | 1.1000 |
| Flange Diameter (Decimal Inch) | 0.6880 |
| Flange Thickness (Decimal Inch) | 0.1100 |
| Ball Diameter (Decimal Inch) | 0.4370 |
| Finish/Coating | Passivate |
| Locking Element | No |
