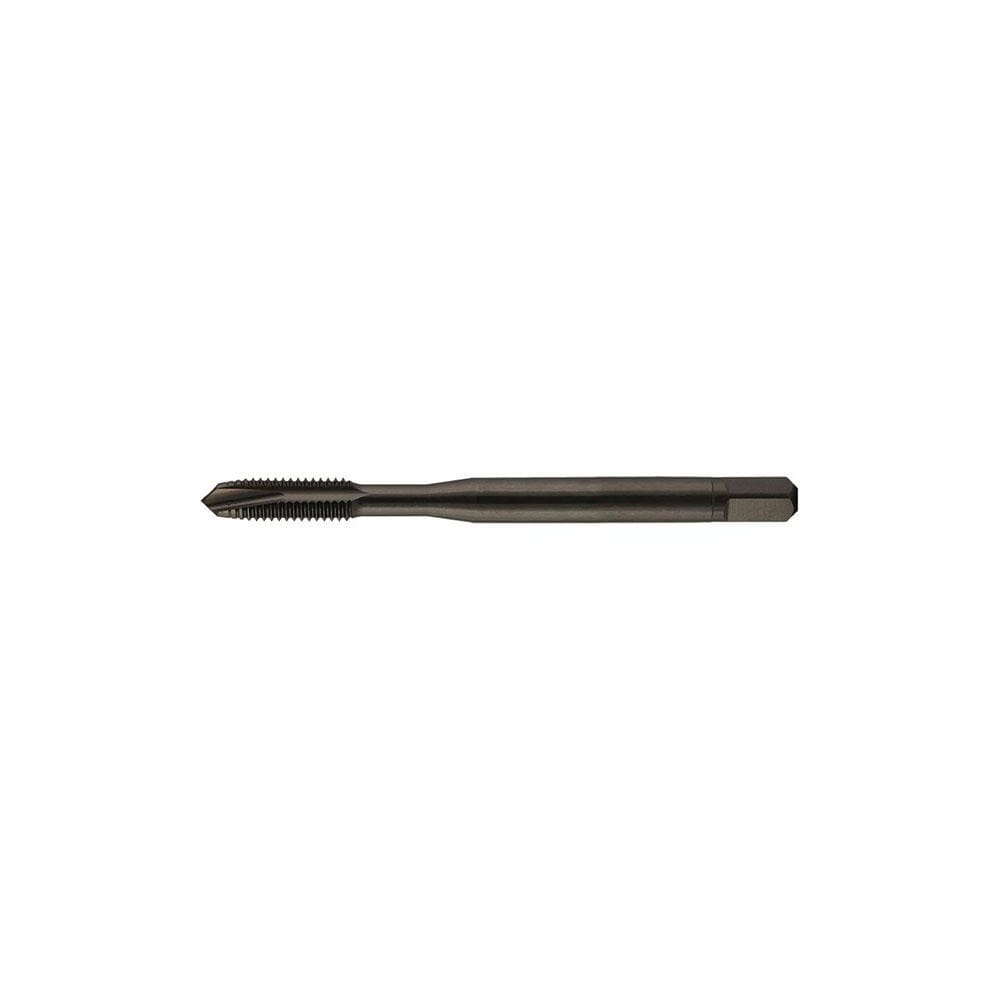

Spiral Point Tap: 1/2-13 UNC, 3 Flutes, Plug Chamfer, 2B Class of Fit, HSS, Oxide Coated
Item #: 04909586
Brand: Yamawa
Model #: 382621
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Stainless Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 13 |
| Overall Length (Inch) | 3-3/8 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Overall Length (Decimal Inch) | 3.375 |
| Thread Length (Decimal Inch) | 0.9840 |
| Thread Length (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 1.6563 |
| Neck Length (Inch) | 1-21/32 |
| Measurement Type | Fractional Inch |
| Series | ZELX SS |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
