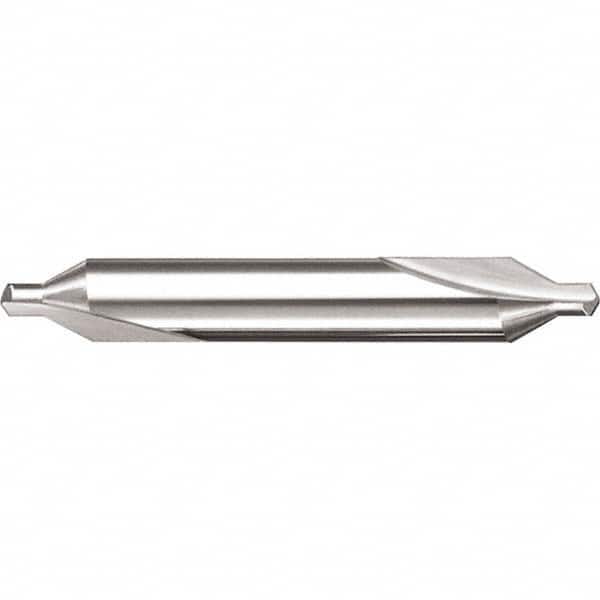

Combo Drill & Countersink: Metric, 118 ™, Solid Carbide AlTiN Finish, Right Hand Cut, Series 301M
Item #: 58986878
Brand: SGS
Model #: 67041
Product Specifications
| Trade Size | Metric |
| Body Diameter (mm) | 3.15 |
| Body Diameter (Decimal Inch) | 0.1240 |
| Drill Point Angle | 118 |
| Coating/Finish | AlTiN |
| Tool Material | Solid Carbide |
| Drill Point Diameter (Decimal Inch) | 0.0492 |
| Drill Point Diameter (mm) | 1.25 |
| Overall Length (Decimal Inch) | 1.2402 |
| Overall Length (mm) | 31.50 |
| Cutting Direction | Right Hand |
| Series | 301M |
| Cutting Edge Style | Plain |
| Included Angle Degree | 60 |
| Insertable Cutter Head | No |
| Tapered | No |
| Tool Application | Drilling; Countersinking |
| End Type | Double |
| Aircraft Style | No |
| Primary Workpiece Material | Composites; High Temperature Alloys; Non-Ferrous Metals; Stainless Steel; Cast Iron; Titanium; Plastics; Steel |
| Secondary Workpiece Material | Composites; High Temperature Alloys; Non-Ferrous Metals; Stainless Steel; Cast Iron; Titanium; Plastics; Steel |
| Long Length Tool | No |
