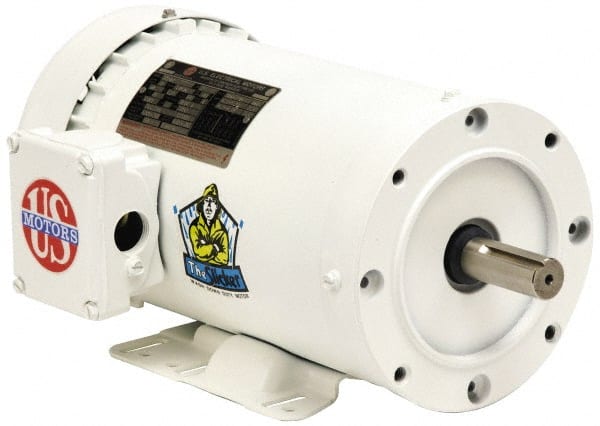

US Motors - 3/4 hp, TENV Enclosure, No Thermal Protection, 3,450 RPM, 115/208-230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor
Item #: 58756776
Brand: US Motors
Model #: WD34C1JC
Product Specifications
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | TENV |
| Horsepower | 3/4 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Washdown |
| Full Load Amperage | 8.8/4.6-4.4 |
| Insulation Class | F |
| Overall Length (Decimal Inch) | 11.4400 |
| Shaft Diameter x Length | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 49.20 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
