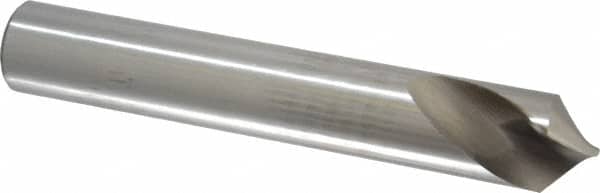

Cleveland - 1" Body Diam, 90°, 6" OAL, High Speed Steel Spotting Drill
Item #: 63734644
Brand: Cleveland
Model #: C24172
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 1 |
| Body Diameter (Decimal Inch) | 1.0000 |
| Drill Point Angle | 90 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (Inch) | 6 |
| Flute Length (mm) | 44.45 |
| Flute Length (Inch) | 1-3/4 |
| Flute Length (Decimal Inch) | 1.7500 |
| Shank Diameter (Inch) | 1 |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Alloy Tool Steel; Aluminum; Carbon Steel; Stainless Steel |
| Series/List | 2635 |
