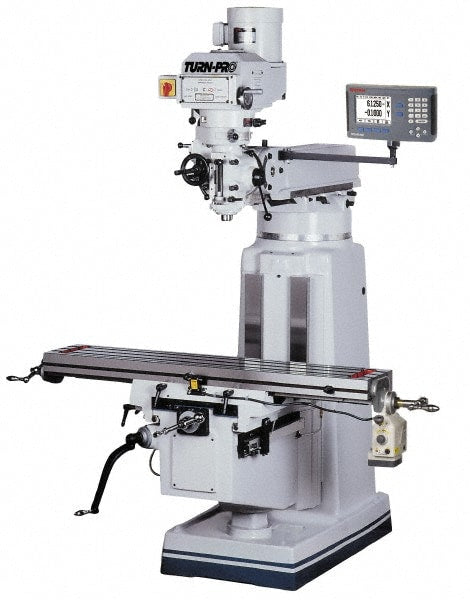

Brand: Value Collection / Part #: 8909988XPFN2AX
Item #: 56303571
Brand: Value Collection
Model #: 8909988XPFN2AX
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 7.0000 |
| Minimum Spindle to Column Distance (Inch) | 7 in |
| Maximum Spindle to Table Distance (Inch) | 20.0000 |
| Maximum Spindle to Table Distance (Decimal Inch) | 20.0000 |
| Minimum Spindle Speed | 70 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | Three |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 6.5000 |
| Cross Travel | 6.5 in |
| Longitudinal Travel | 39.0 in |
| Longitudinal Travel (Decimal Inch) | 39.0000 |
| Knee Travel (Decimal Inch) | 17.7500 |
| Knee Travel | 17.75 in |
| Quill Diameter (Inch) | 3-3/8 |
| Horsepower | 3.00 |
| Voltage | 220V; 440V |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Ram Turret Swivel (Degrees) | 360 |
| Ram Travel Length (Decimal Inch) | 18.0000 |
| Ram Travel Length (Inch) | 18 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 88.0000 |
| Overall Height (Inch) | 88 |
| Overall Length (Inch) | 66 |
| Overall Length (Decimal Inch) | 66.0000 |
| Overall Depth (Inch) | 72 |
| Overall Depth (Inch) | 72.0000 |
| Includes | Table Feed & Newall 2-axis DRO kit |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.0000 in |
| Maximum Spindle To Column Distance (Inch) | 26 |
