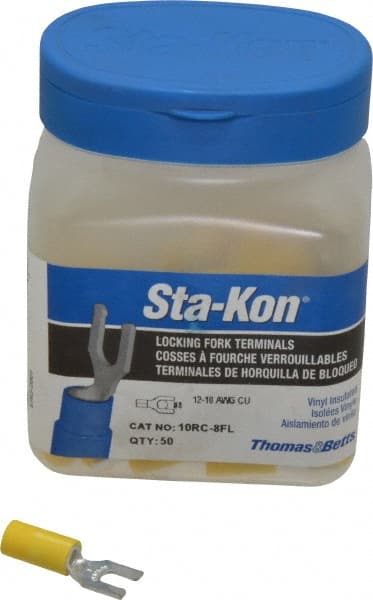

Thomas & Betts - #8 Stud, 12 to 10 AWG Compatible, Partially Insulated, Crimp Connection, Locking Fork Terminal
Item #: 54064134
Brand: Thomas & Betts
Model #: 10RC-8FL
| Product Specifications | |
|---|---|
| Terminal Type | Locking |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (#) | 8 |
| Fork Width (Decimal Inch) | 0.3700 |
| Insulation Material | Vinyl |
| Color | Yellow |
| Overall Length (Decimal Inch) | 1.0900 |
| Voltage | 600 V |
| Contact Material | Copper |
| Contact Plating | Tin |
| Standards Met | CSA 22.2; CSA Certified; RoHS Compliant; UL 486A; UL 486B; UL 94 V-0; UL File E9809; UL Listed |
