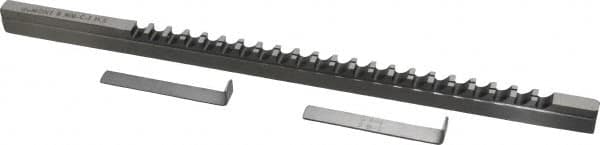

Dumont Minute Man - 8mm Keyway Width, Style C-1, Keyway Broach
Item #: 00290148
Brand: Dumont Minute Man
Model #: 44407
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (mm) | 8.00 |
| Broach Style | C-1 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Broach Body Width (Inch) | 3/8 |
| Minimum Length of Cut (Inch) | 25/64 |
| Maximum Length of Cut (Inch) | 2-1/2 |
| Overall Length (Inch) | 11-3/4 |
| Standard Millimeter Key Size Compatibility | 8x7 |
| Minimum Keyway Width Tolerance (Decimal Inch) | 0.3143 |
| Maximum Keyway Width Tolerance (Decimal Inch) | 0.3155 |
| Number of Shims Required | 2 |
| Pressure Required for Maximum Length of Cut (Lb.) | 3680 |
