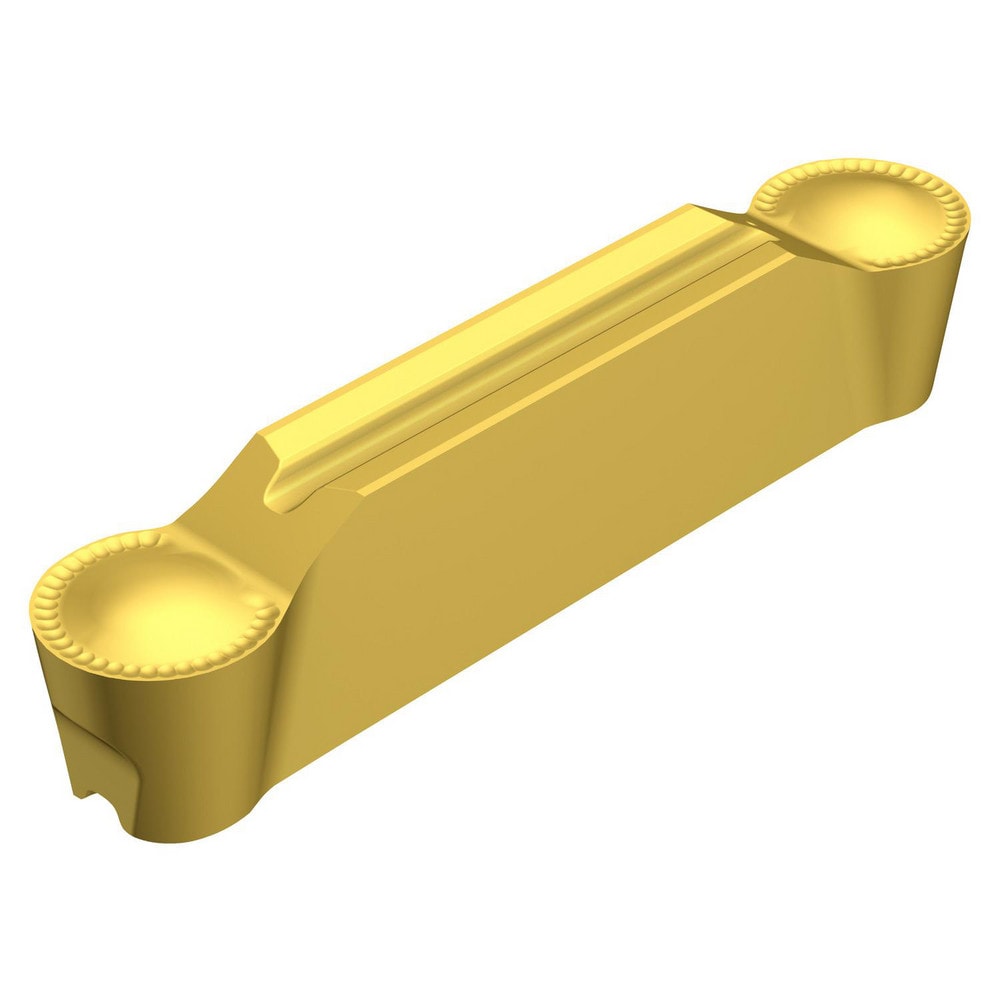

Profiling Insert: C2I-F2N-0318-RM 1135, 4.3300 mm Thickness
Item #: 01030642
Brand: Sandvik Coromant
Model #: 8290292
Product Specifications
| Insert Style | C2I |
| Insert Size Code | F2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1135 |
| Thickness (mm) | 4.3300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Maximum Depth of Cut (mm) | 1.39 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0626 |
| Corner Radius (mm) | 1.59 |
| Relief Angle | 7.000 |
| Chipbreaker | RM |
| Series | CoroCut 2 |
| Coating Process | CVD |
| Insert Length (Decimal Inch) | 0.7894 |
| Insert Length (mm) | 20.05 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-F2N-0318-RM 1135 |
| Standards | ISO |
| Rake Angle | 0.000 |
| Side Length (Decimal Inch) | 0.7894 |
| Side Length (mm) | 20.05 |
| Applications | Profiling |
| Coating/Finish | TiCrN/Al2O3/TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1706 |
| Width (Decimal Inch - 4 Decimals) | 0.1252 |
| Width (mm - 2 Decimals) | 3.18 |
| UNSPSC Code | 23242105 |
