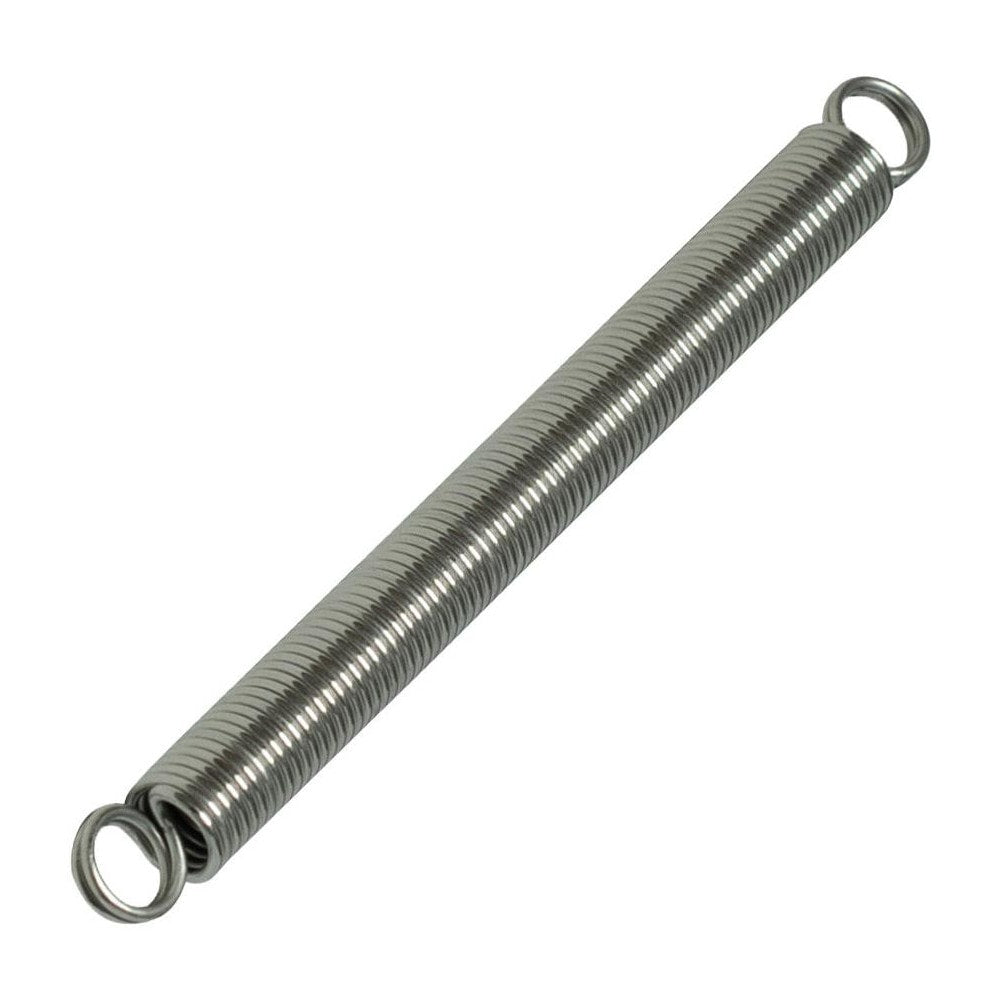

Extension Springs; End Type: Double Loop; Outside Diameter (Decimal Inch
Item #: 03210358
Brand: Associated Spring Raymond
Model #: MCDE0750010500S
Product Specifications
| End Type | Double Loop |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7500 |
| Spring Rate | 8.2000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 5.1860 |
| Initial Tension (Lb.) | 7.43 |
| Maximum Extended Length (Decimal Inch) | 7.5400 |
| Free Length (Inch) | 5 |
| Inside Hook Length (Fractional Inch) | 5 |
| Standards | ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.0930 |
| UNSPSC Code | 31161907 |
