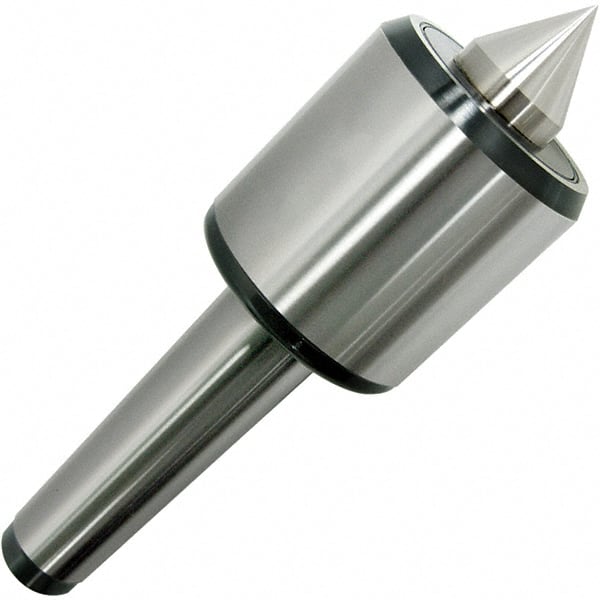

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT4
Item #: 99454340
Brand: Accupro
Model #:
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT4 ; Maximum Workpiece Weight (Lb.): 3,086.47 ; Maximum Workpiece Weight (kg): 1,400.00 ; Point Style: Standard ; Point Diameter (mm): 30.00
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 3086.47 |
| Maximum Workpiece Weight (kg) | 1400.00 |
| Point Style | Standard |
| Point Diameter (mm) | 30.00 |
| Point Length (mm) | 35.00 |
| Accuracy (mm) | 0.0020 |
| Load Capacity (Lb.) | 3086.47 |
| Head Diameter (mm) | 66.00 |
| Head Length (Decimal Inch) | 2.7953 |
| Shank Length (Decimal Inch) | 4.2520 |
| Overall Length (mm) | 214.00 |
| Point to Gauge Line (mm) | 111.30 |
| Included Angle | 60.00 |
| Maximum RPM | 6000 |
| Carbide-Tipped | No |
