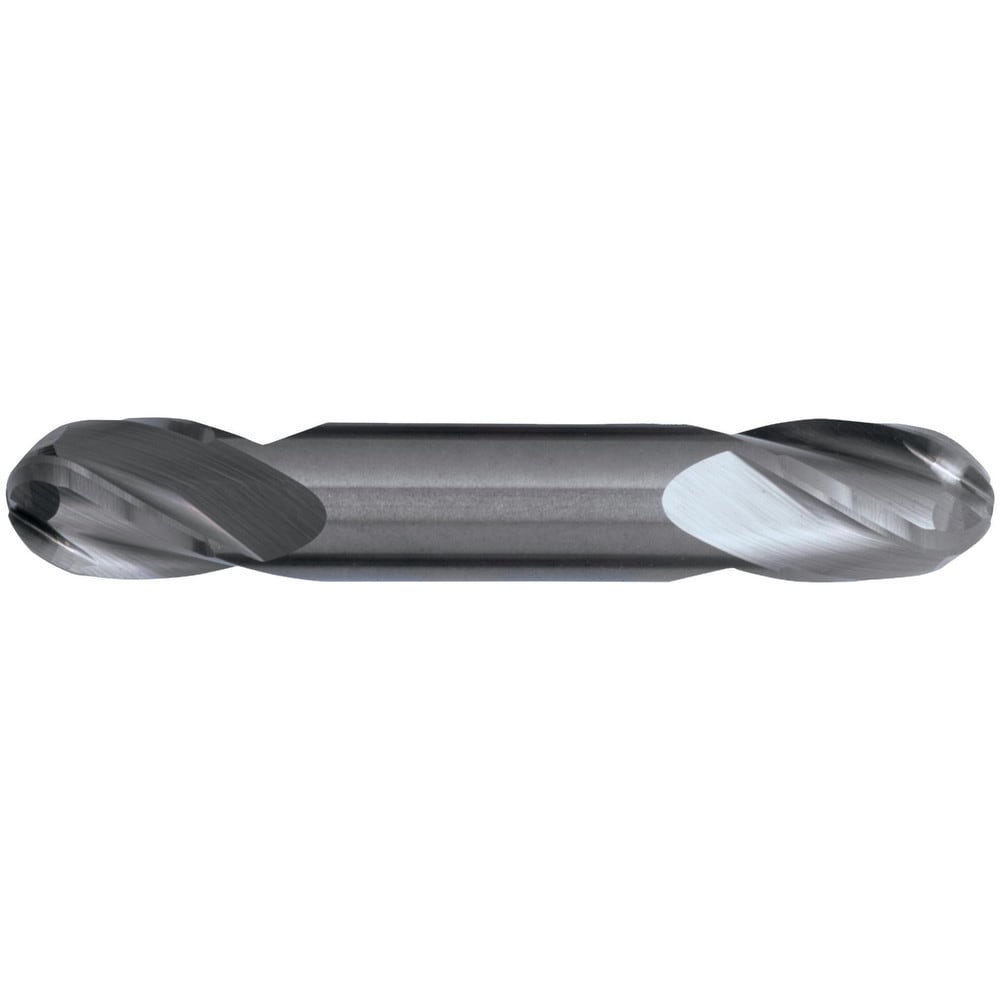

Ball End Mill: 5/32" Dia, 7/16" LOC, 4 Flute, High Speed Steel
Item #: 12971776
Brand: Cleveland
Model #: C60308
Product Specifications
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Mill Diameter (mm) | 3.97 |
| Number Of Flutes | 4 |
| End Mill Material | High Speed Steel |
| Length of Cut (Inch) | 7/16 |
| Length of Cut (mm) | 11.11 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 3/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.20 |
| Chipbreaker | No |
| Undercutting | Yes |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (mm) | 9.53 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Material Grade | Submicron |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | CEM-DE-4B |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Single Or Double End | Double |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4375 |
| System Of Measurement | Fractional Inch |
