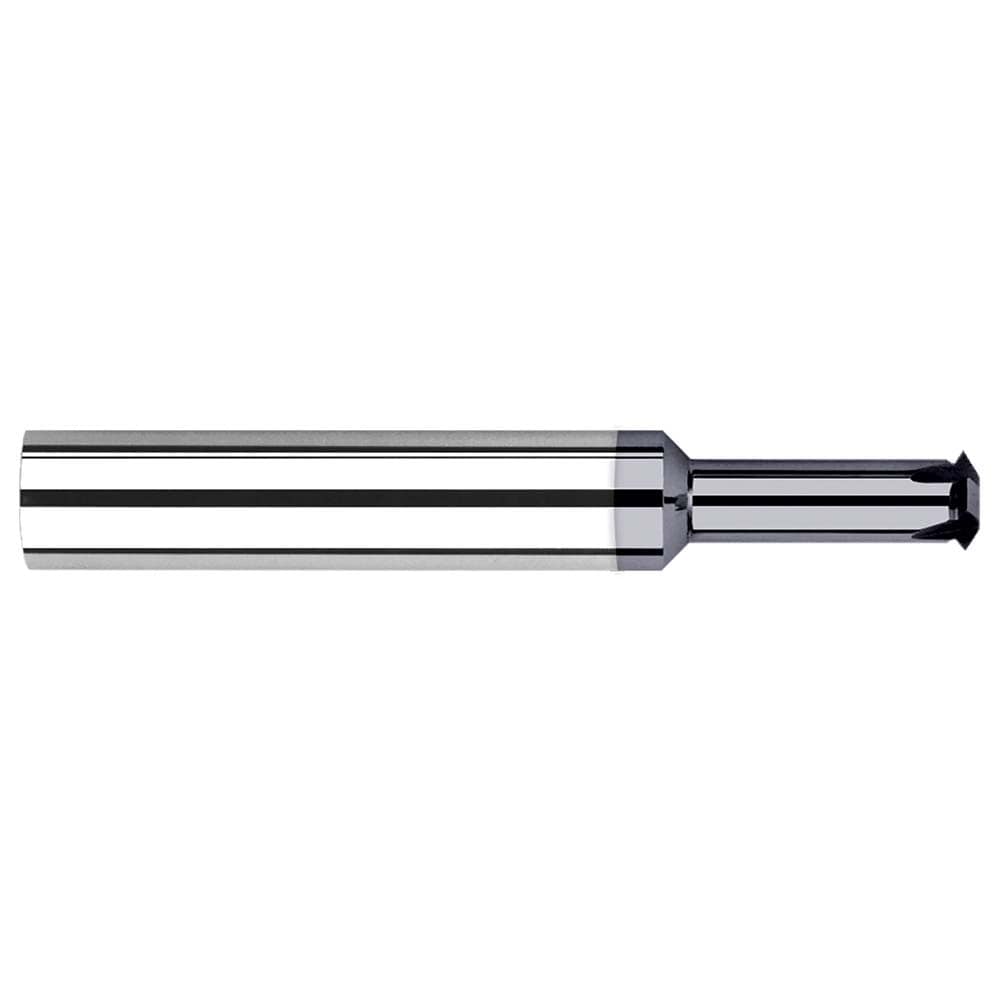

Brand: Harvey Tool / Part #: 771850-C3
Item #: 82498619
Brand: Harvey Tool
Model #: 771850-C3
Product Specifications
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0500 |
| Minimum Threads Per Inch | 20 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | 1/4 in-20 - 1/4 in-56 |
| Thread Depth (Decimal Inch) | 1.1250 |
| Shank Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.1800 |
| Minimum Nominal Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.1150 |
| Shank Length (Decimal Inch) | 1.3750 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
