Brand: Widia / Part #: 3539145
Item #: 98032147
Brand: Widia
Model #: 3539145
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.3120 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Toolholder Style | WMTSR |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | S312 |
| Insert Compatibility | WMTS312I8P03 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 4.1740 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | WMT |
| Overall Length (Decimal Inch) | 6.0000 |

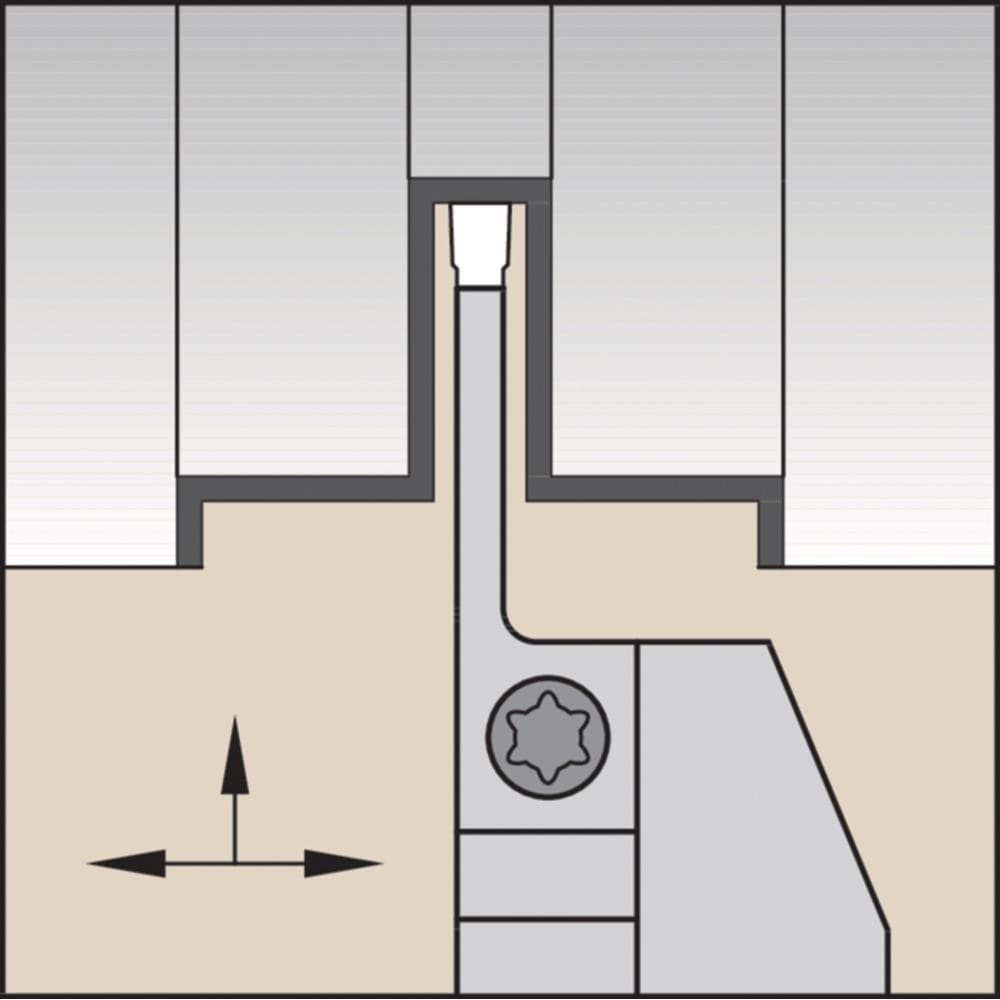

| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (mm) | 43.280 |
| Head Length (Decimal Inch) | 1.8260 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 8.0 |
| Coolant Through | No |
