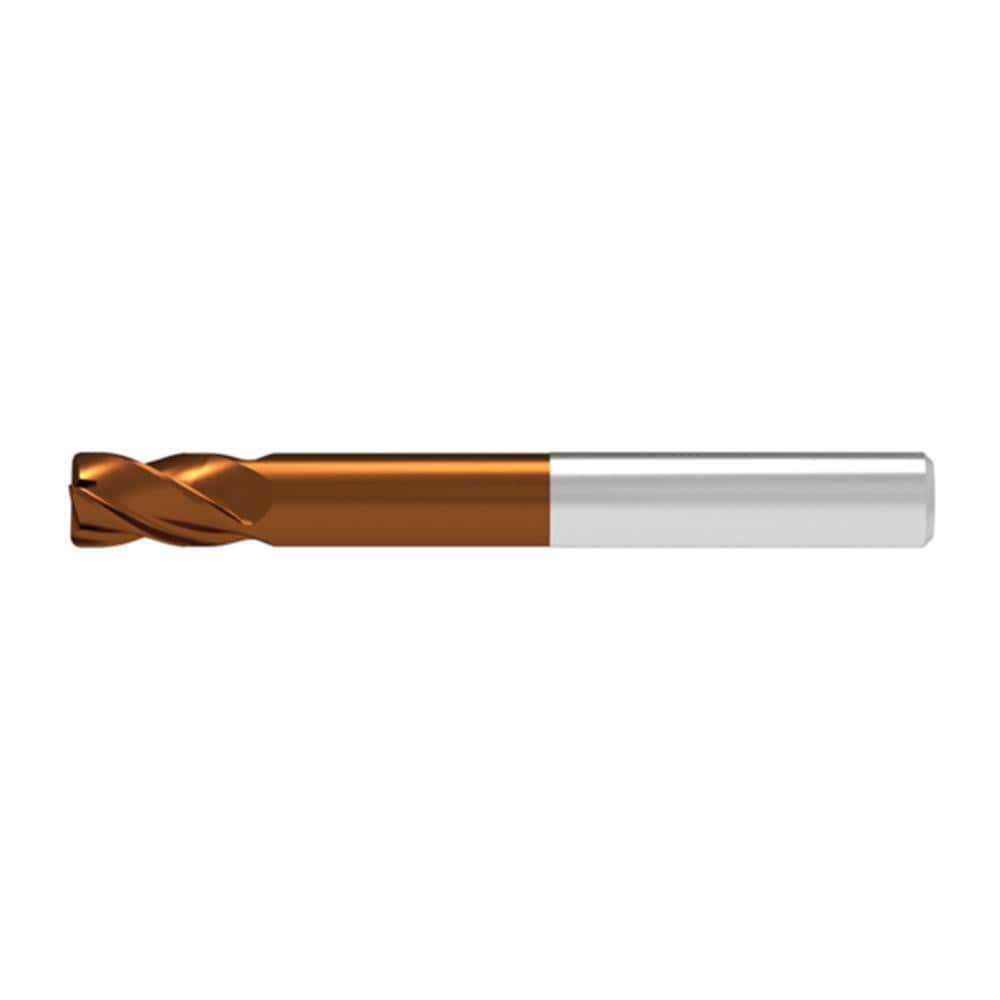

Corner Radius End Mill: 1.00 mm Dia, 1.50 mm LOC, 0.10 mm Radius, 4 Flute, Solid Carbide
Item #: 05891999
Brand: WNT
Model #: 5360431001
Product Specifications
| Mill Diameter (mm) | 1.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 1.5000 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DPX62U |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.10 |
| Overall Length (mm) | 48.0000 |
| Coolant Through | No |
| Chipbreaker | No |
| End Type | Corner Radius |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.0000 |
| Neck Diameter (mm) | 0.950 |
| UNSPSC Code | 27112803 |
| Series | 53604 |
