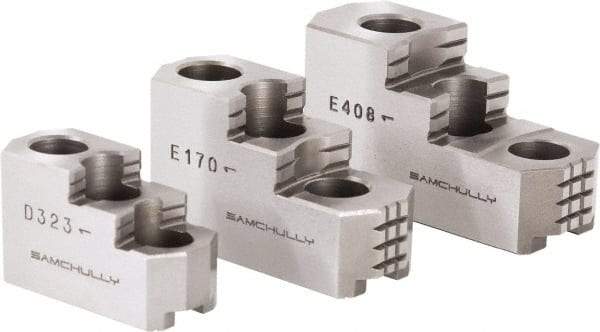

Samchully - 8" Max Chuck Diam Compatibility, Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 2 Steps, 35mm Wide x 86mm Long x 51mm High
Item #: 57912131
Brand: Samchully
Model #: HB08A1
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 8.00 |
| Number of Steps | 2 |
| Material | Steel |
| Overall Width/Diameter (mm) | 35.00 |
| Brand Compatibility | Kitagawa N-08; Kitagawa NL-08; Kitagawa B-208; Kitagawa BB-208; Kitagawa BL-208; Kitagawa BS-308; Kitagawa B-08 |
| Overall Length (mm) | 86.00 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Number of Jaws | 3 |
| Overall Height (mm) | 51.00 |
| Fastener Size (mm) | M12 |
