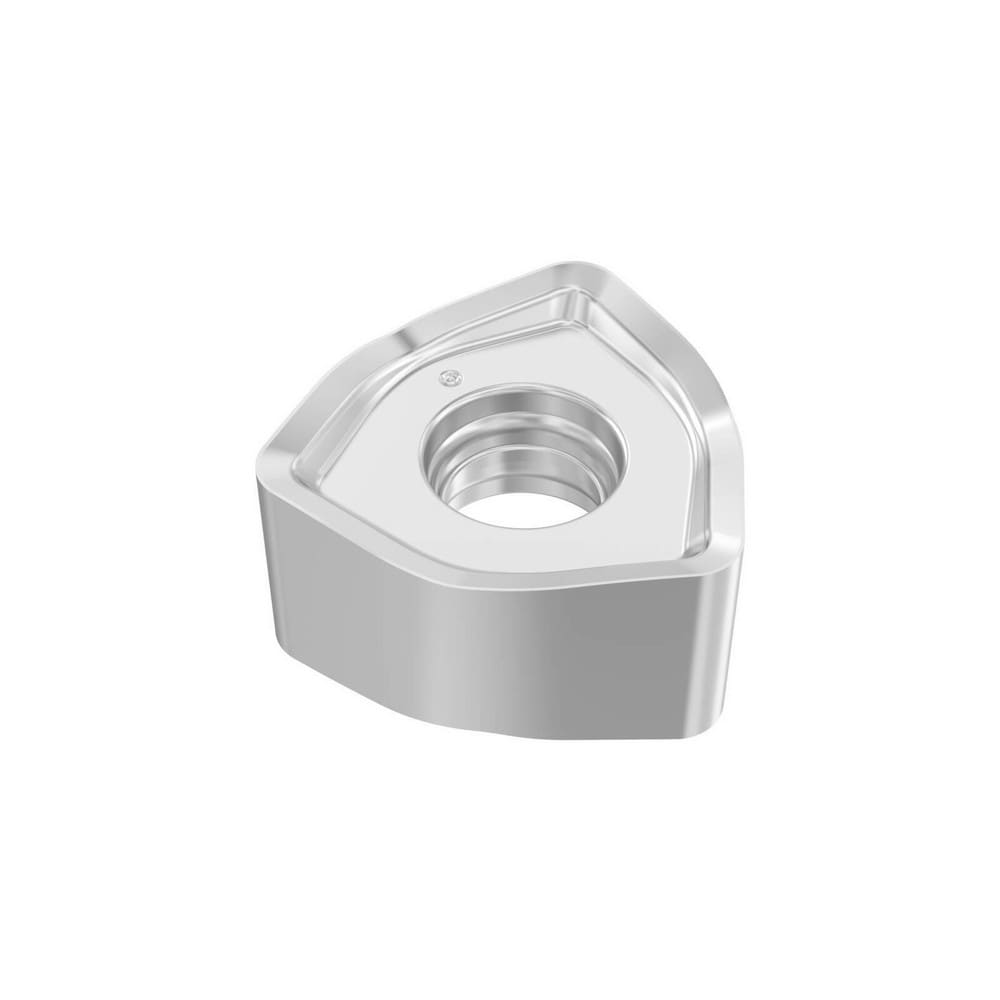

Milling Insert: 218.21-230TR-06-ME13 MP3501, Carbide
Item #: 86382686
Brand: Seco
Model #: 10198709
Product Specifications
| Insert Style | 218.21 |
| Insert Size | 230 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | MP3501 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2343 |
| Coating/Finish | TiCN; Chrome; Al2O3 |
| Relief Angle | 0.000 |
| Insert Size Code | 230 |
| Material Grade | K40; K20; K30; P30; P40; P20 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 15/64 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| Series | 218.21 |
| Coating Process | Duratomic |
| Hole Diameter (Decimal Inch) | 0.1870 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Rake | Negative |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | 218.21-230TR-06-ME13 |
| Iso Code | 218.21-230TR-06-ME13 |
| Standards | ISO; ANSI |
| Rake Angle | 21.000 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 10198709 |
| Cutter Series Compatibility | R220.21-230 |
| Chip Breaker | ME13 |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Material Application | Steel |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
