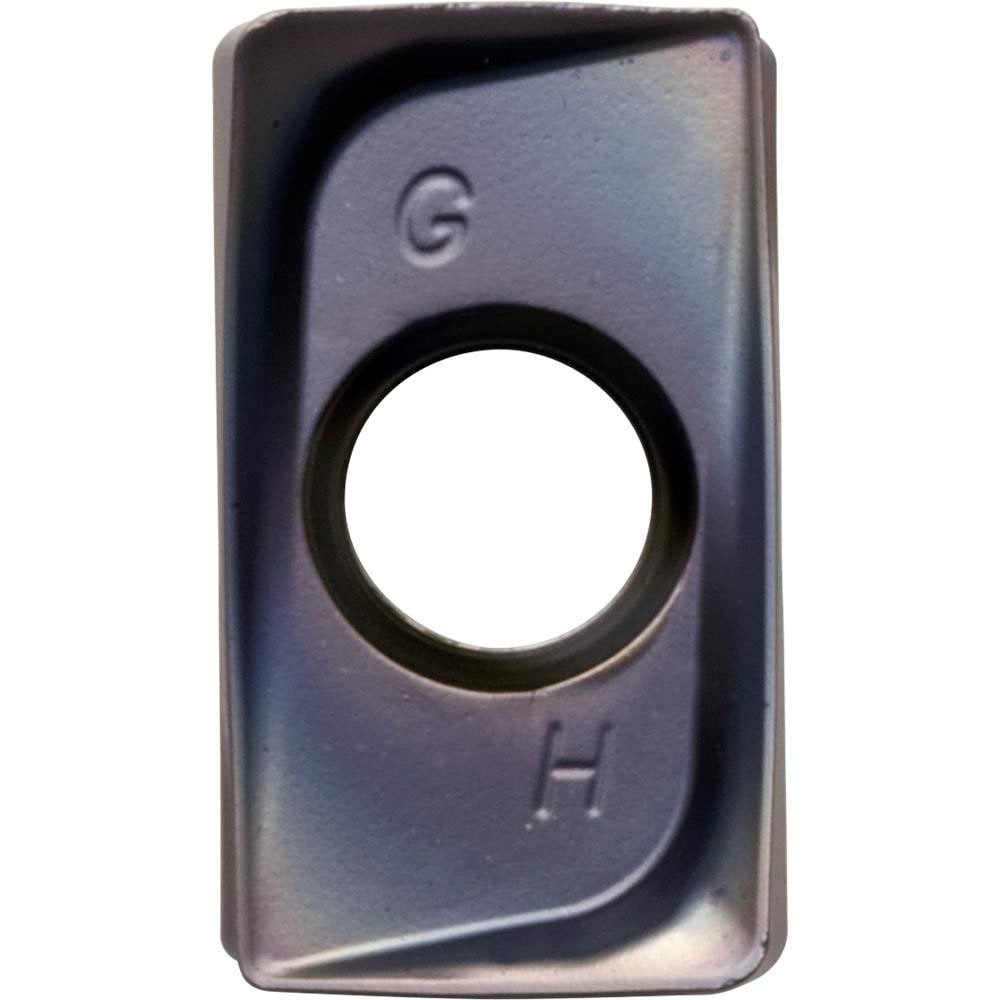

Milling Insert: LOMU100404ER-GM PR1825, Carbide
Item #: 86708054
Brand: Kyocera
Model #: TLT00074
Product Specifications
| Insert Style | LOMU |
| Insert Size | 100404 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
| Thickness (mm) | 4.0000 |
| Coating/Finish | MEGACOAT NANO EX |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | MEW Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Cutting Edge Effective Length (mm) | 10.90 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4291 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | LOMU100404ERGMPR1825 |
| Iso Code | LOMU100404ER-GM |
| Manufacturers Catalog Number | LOMU100404ERGMPR1825 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2598 |
| Width (mm - 2 Decimals) | 6.60 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
