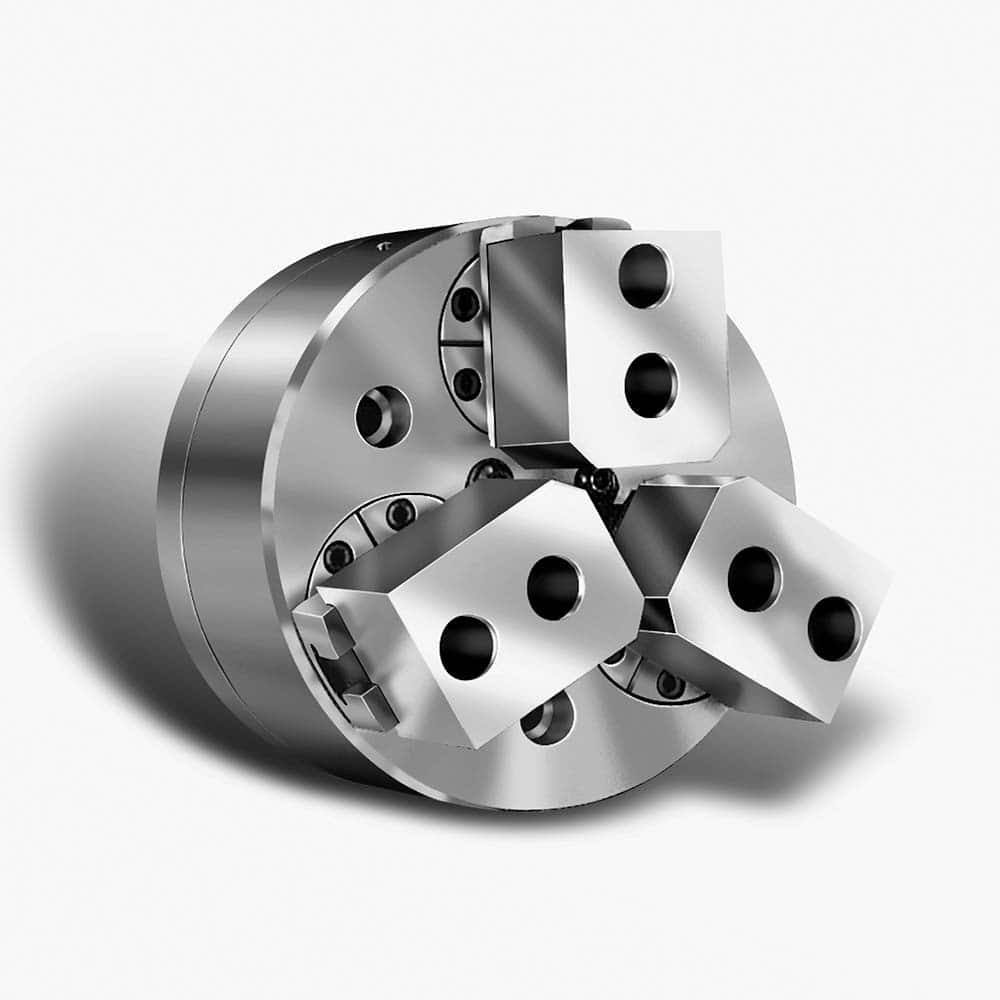

Atlas Workholding - 3 Jaw 10" Diam A-6 Lathe Chuck
Item #: 57585648
Brand: Atlas Workholding
Model #: BL10-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 3 |
| Mount | A-6 |
| Chuck Actuation Style | Drawbar |
| Minimum Jaw Capacity (Decimal Inch) | 1.9690 |
| Maximum Jaw Capacity (Decimal Inch) | 7.9900 |
| Jaw Stroke Diameter (Decimal Inch) | 0.5000 |
| Piston Stroke Length (Decimal Inch) | 0.6890 |
| Maximum Drawbar Pulling Force (lbf) | 9900.00 |
| Maximum Static Gripping Force (lbf) | 29750.00 |
| Maximum RPM | 3000 |
