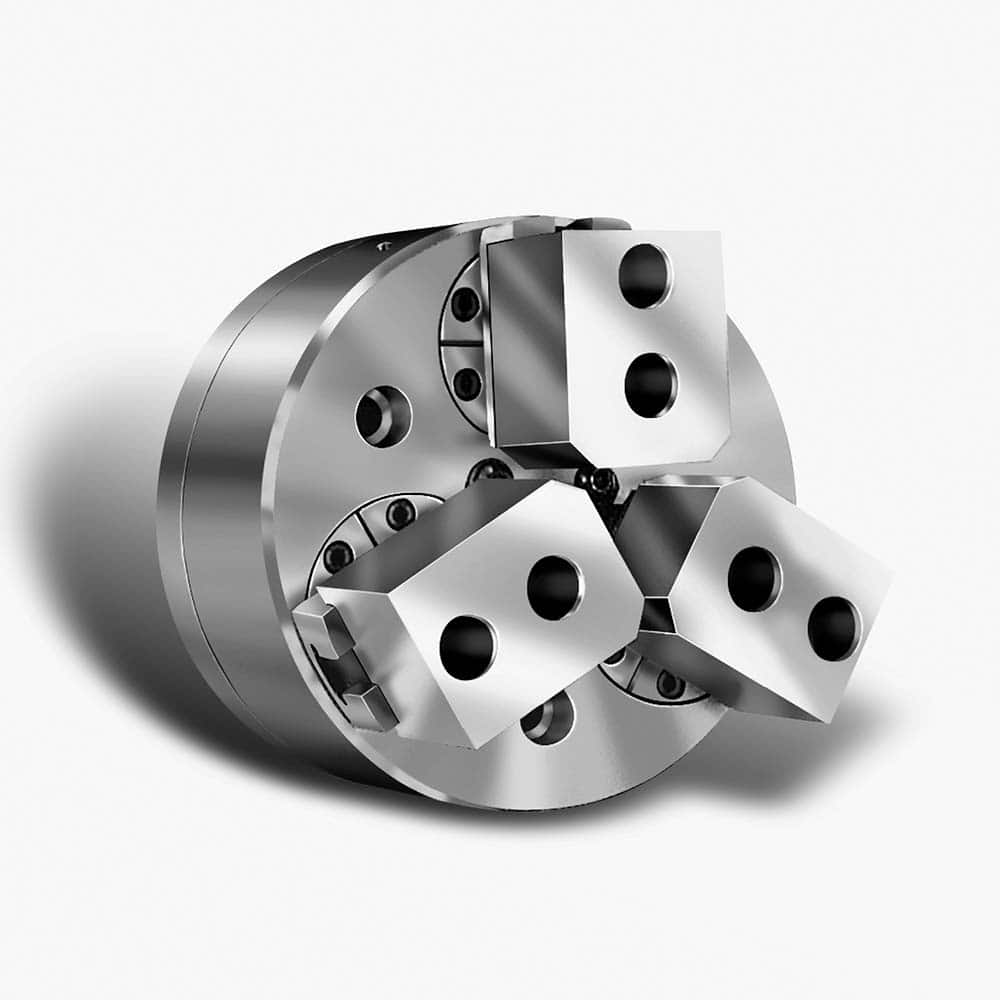

Atlas Workholding - 3 Jaw 8" Diam A-5 Lathe Chuck
Item #: 57585630
Brand: Atlas Workholding
Model #: BL8-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 7.8700 |
| Number of Jaws | 3 |
| Mount | A-5 |
| Chuck Actuation Style | Drawbar |
| Minimum Jaw Capacity (Decimal Inch) | 0.6300 |
| Maximum Jaw Capacity (Decimal Inch) | 5.9800 |
| Jaw Stroke Diameter (Decimal Inch) | 0.5630 |
| Piston Stroke Length (Decimal Inch) | 0.5630 |
| Maximum Drawbar Pulling Force (lbf) | 7950.00 |
| Maximum Static Gripping Force (lbf) | 23800.00 |
| Maximum RPM | 3500 |
