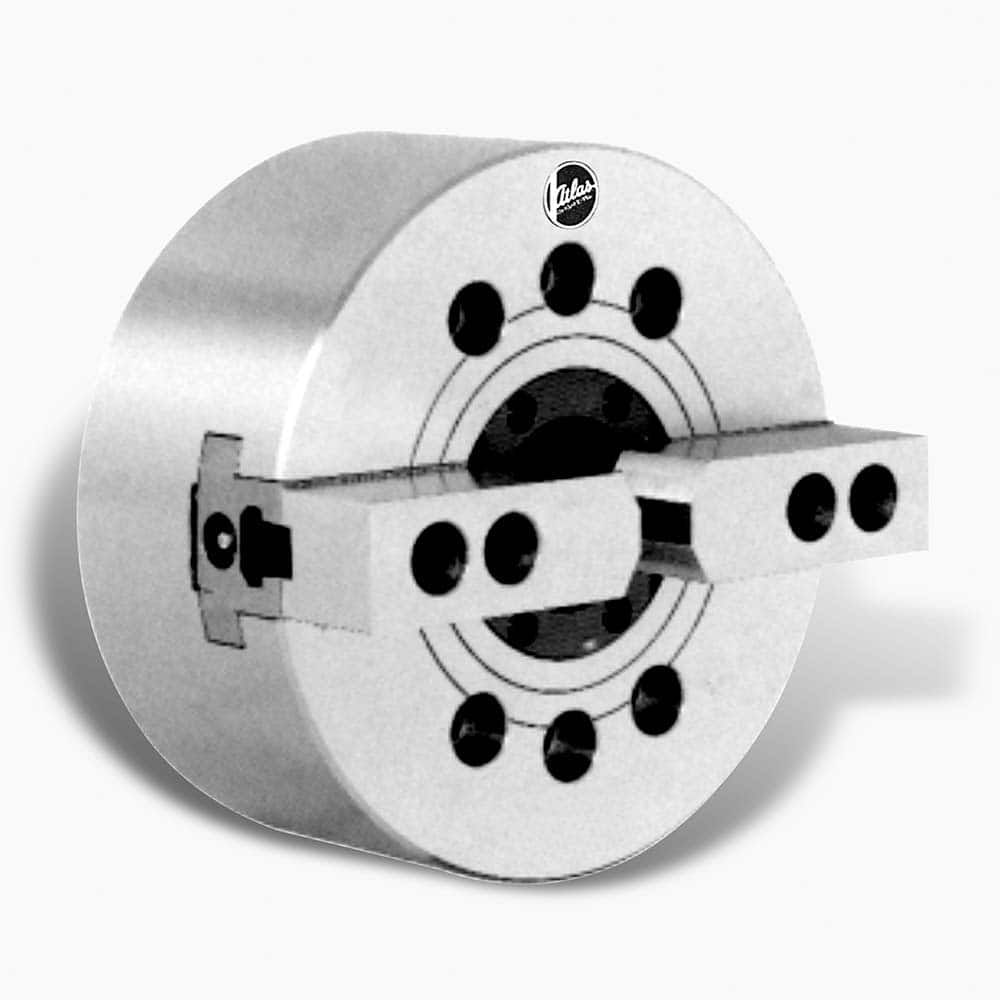

Atlas Workholding - 2 Jaw 12" Diam A2-11 Lathe Chuck
Item #: 57585564
Brand: Atlas Workholding
Model #: HST12-A11
Product Specifications
| Chuck Diameter (Decimal Inch) | 11.9700 |
| Number of Jaws | 2 |
| Mount | A2-11 |
| Through-Hole Diameter (Decimal Inch) | 3.5820 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.6530 |
| Maximum Jaw Capacity (Decimal Inch) | 11.9700 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4170 |
| Piston Stroke Length (Decimal Inch) | 0.9050 |
| Maximum Drawbar Pulling Force (lbf) | 12363.00 |
| Maximum Static Gripping Force (lbf) | 32372.00 |
| Maximum RPM | 3300 |
| Body Material | Steel |
