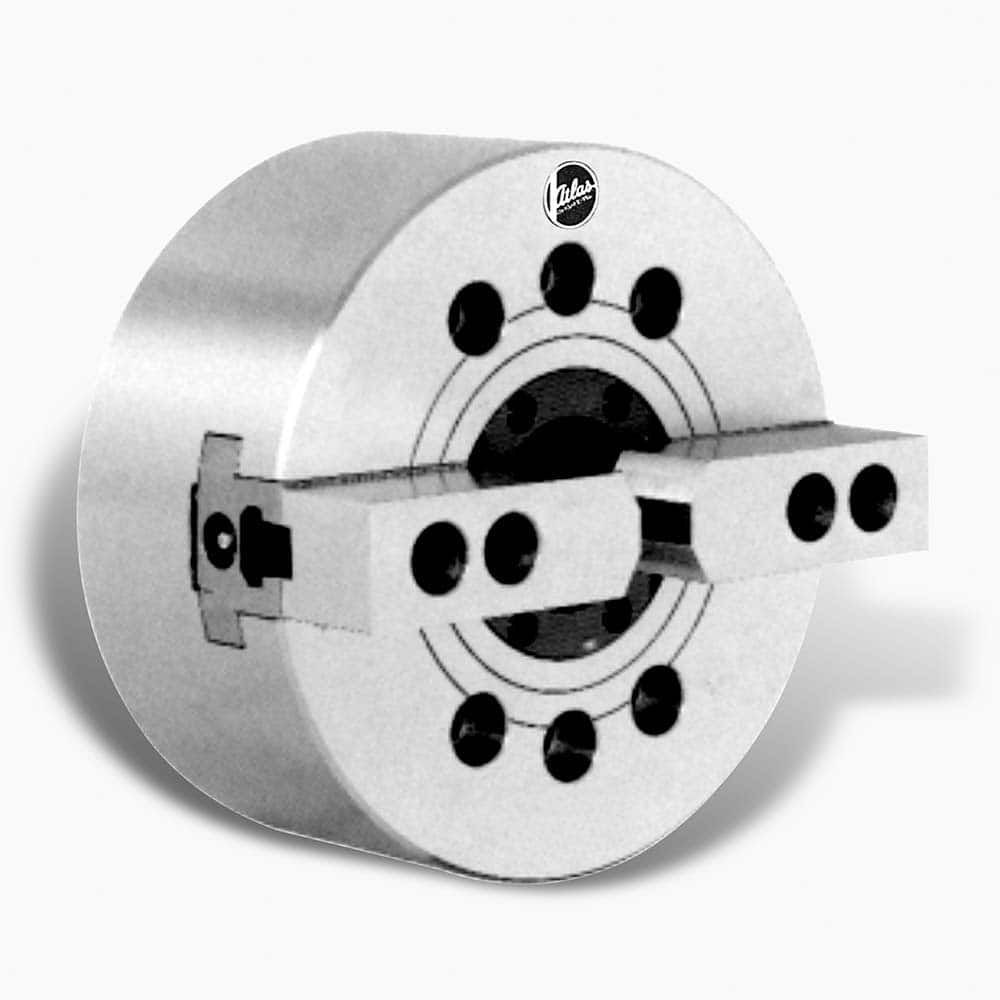

Atlas Workholding - 2 Jaw 7" Diam A2-5 Lathe Chuck
Item #: 57585549
Brand: Atlas Workholding
Model #: HST6-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 6.6300 |
| Number of Jaws | 2 |
| Mount | A2-5 |
| Through-Hole Diameter (Decimal Inch) | 1.7710 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.5900 |
| Maximum Jaw Capacity (Decimal Inch) | 6.6500 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2160 |
| Piston Stroke Length (Decimal Inch) | 0.4720 |
| Maximum Drawbar Pulling Force (lbf) | 4945.00 |
| Maximum Static Gripping Force (lbf) | 12813.00 |
| Maximum RPM | 6000 |
| Body Material | Steel |
