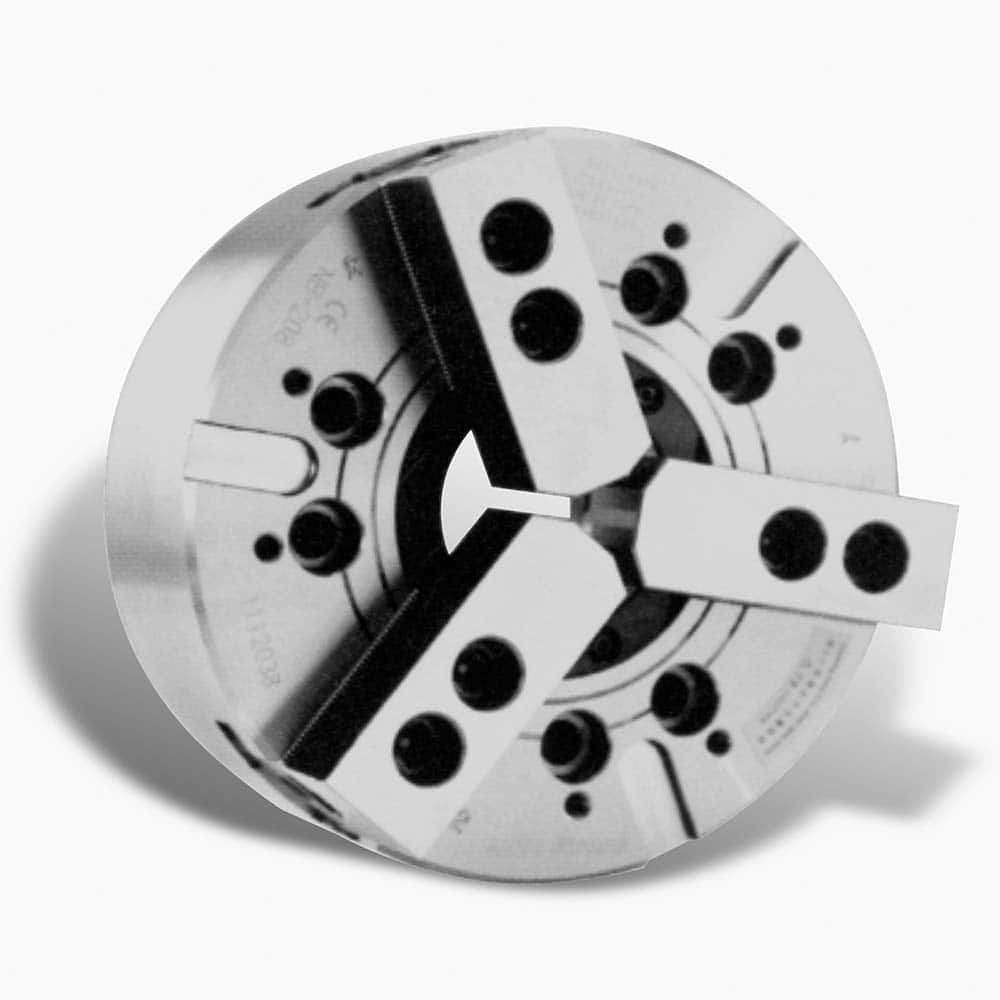

Atlas Workholding - 3 Jaw 8" Diam A2-5 Lathe Chuck
Item #: 57585481
Brand: Atlas Workholding
Model #: ATLB8-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 8.2670 |
| Number of Jaws | 3 |
| Mount | A2-5 |
| Through-Hole Diameter (Decimal Inch) | 2.5980 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.9050 |
| Maximum Jaw Capacity (Decimal Inch) | 8.2700 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2910 |
| Piston Stroke Length (Decimal Inch) | 0.6890 |
| Maximum Drawbar Pulling Force (lbf) | 7928.00 |
| Maximum Static Gripping Force (lbf) | 19554.00 |
| Maximum RPM | 5000 |
