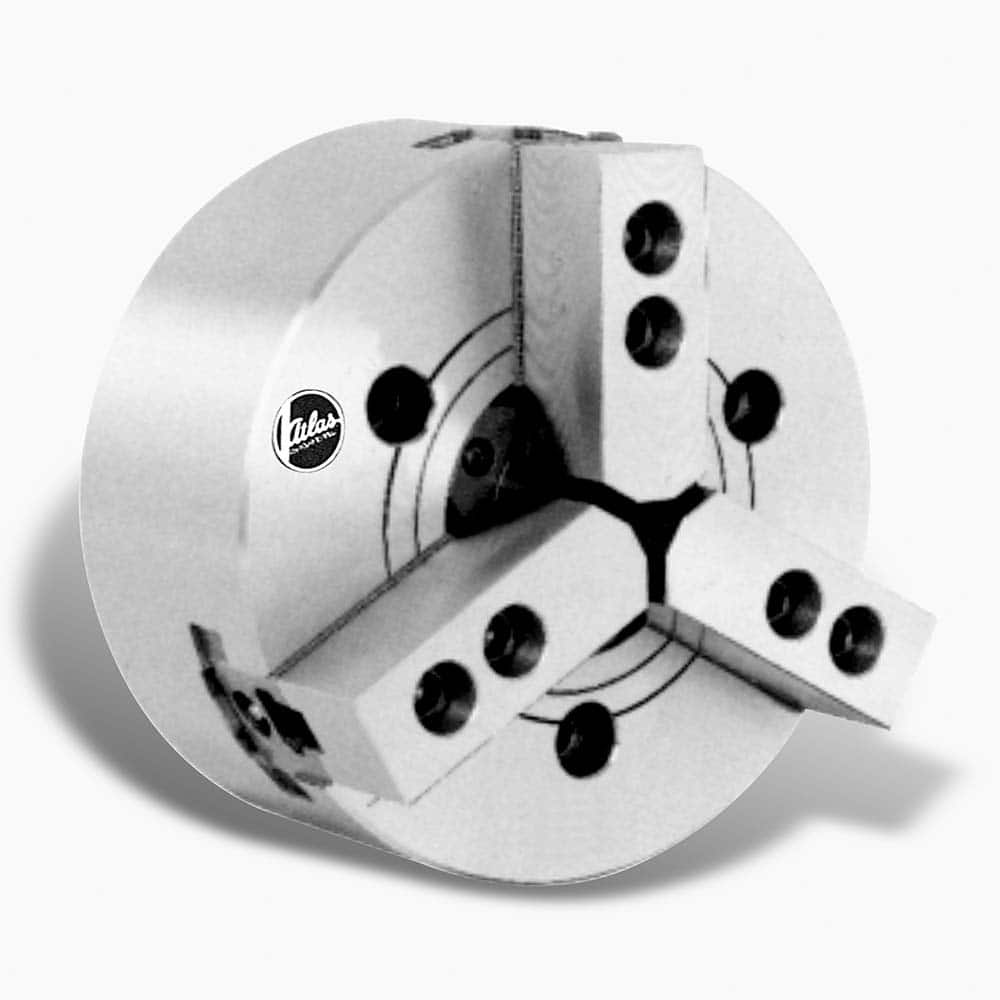

Atlas Workholding - 3 Jaw 10" Diam A-8 Lathe Chuck
Item #: 57585457
Brand: Atlas Workholding
Model #: ALS10-A8
Product Specifications
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 3 |
| Mount | A-8 |
| Through-Hole Diameter (Decimal Inch) | 2.0860 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.8660 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 1.1810 |
| Piston Stroke Length (Decimal Inch) | 1.1810 |
| Maximum Drawbar Pulling Force (lbf) | 12094.00 |
| Maximum Static Gripping Force (lbf) | 14169.00 |
| Maximum RPM | 3000 |
| Body Material | Steel |
