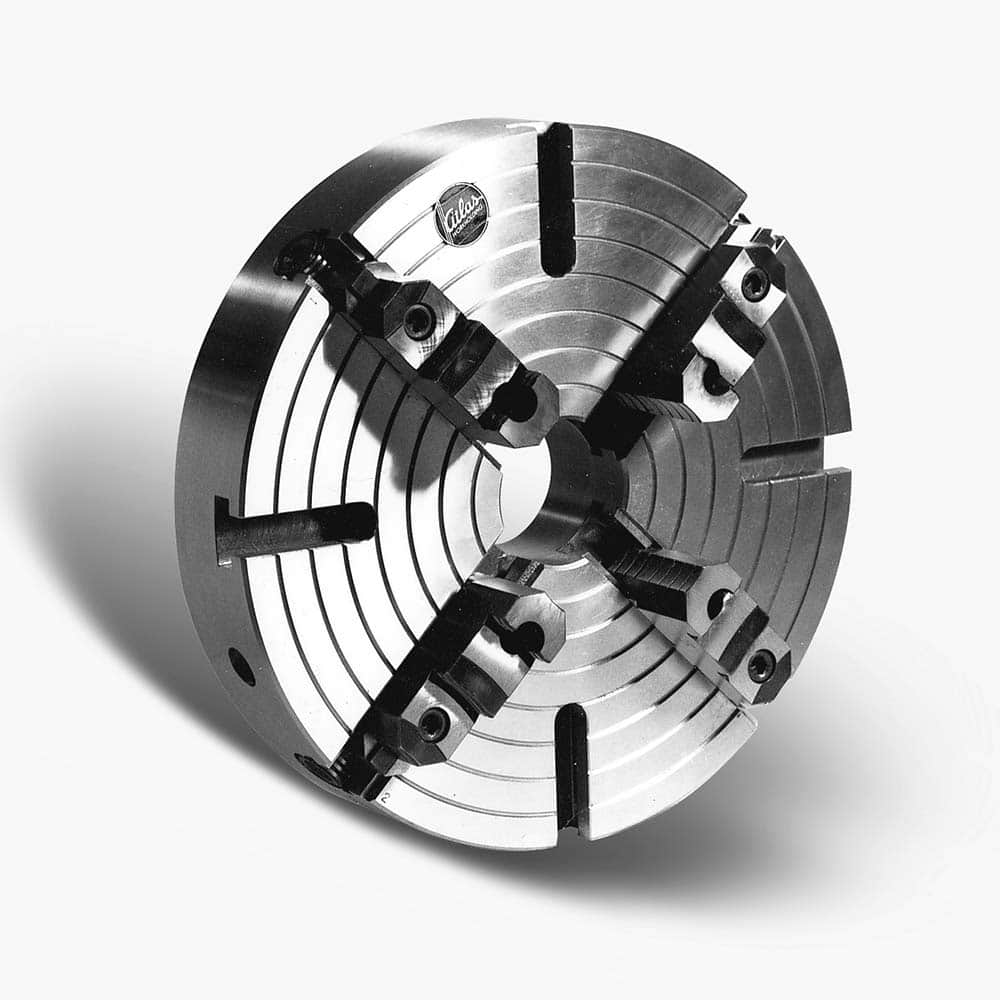

Atlas Workholding - Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 32 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 5.3100 ; Body Material: Forged Steel
Item #: 57585325
Brand: Atlas Workholding
Model #: 3243-2000
Product Specifications
Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 32 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 5.3100 ; Body Material: Forged Steel
| Chuck Type | Independent |
| Nominal Chuck Size | 32 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 5.3100 |
| Body Material | Forged Steel |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 31.5000 |
| Series | 432 |
| Jaw Height (Decimal Inch) | 3.3900 |
| Adjustable | Yes |
| Jaw Type | Tongue & Groove Jaws |
| Body Length (Decimal Inch) | 4.9200 |
| Includes | Mounting Plate |
