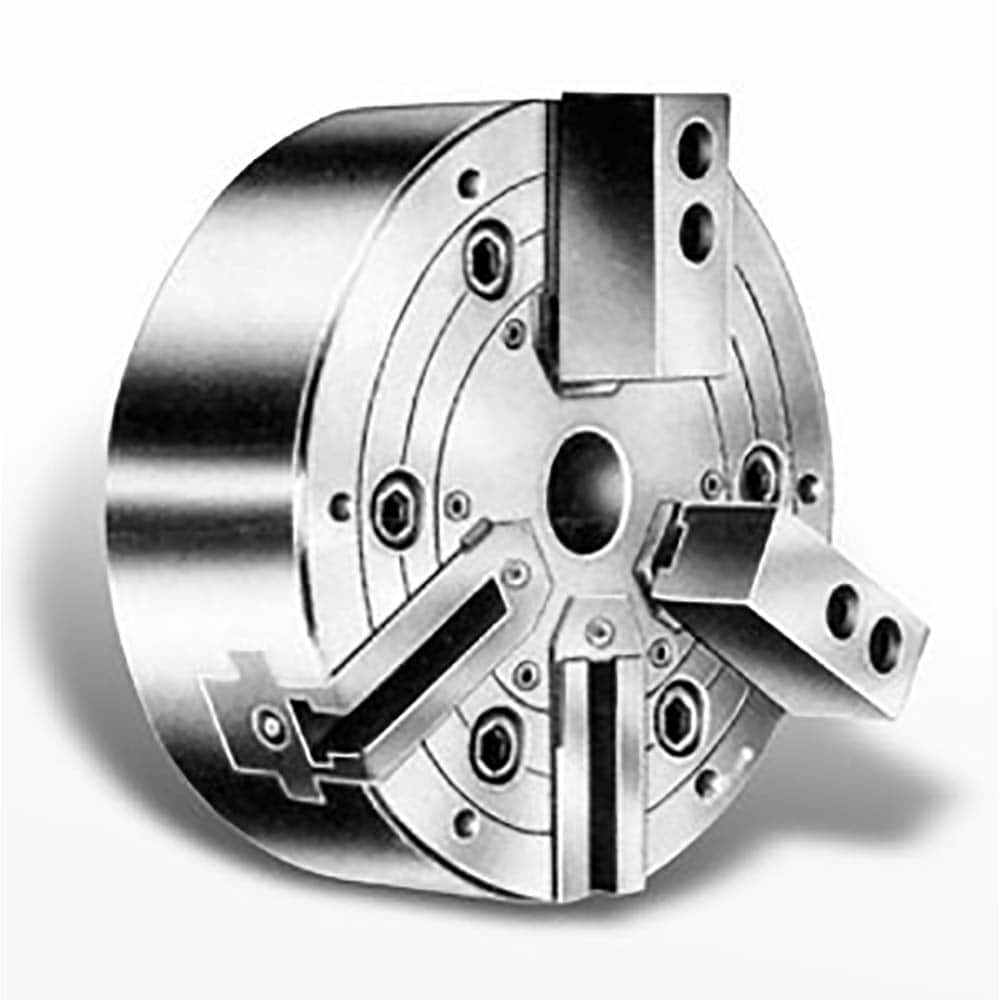

8″ Diam A-5 Lathe Chuck 1.378″ Through Hole, 1.5mm x 60° Serrated Jaws
Item #: 57585218
Brand: Atlas Workholding
Model #: PAFH8-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 8.26 in |
| Through-hole Diameter | 1.378 in |
| Through-Hole Diameter (Decimal Inch) | 1.3780 |
| Minimum Jaw Capacity | 1.181 in |
| Maximum Jaw Capacity | 7.87 in |
| Jaw Stroke Diameter | 0.378 in |
| Piston Stroke Length | 0.709 in |
| Maximum Drawbar Pulling Force | 3306.00 (2 Jaw) lb; 4409.00 (3 Jaw) lb |
| Maximum Static Gripping Force | 9700.00 (3 Jaw) lb; 7275.00 (2 Jaw) lb |
| Maximum Rpm | 3000 RPM |
| Jaw Interface Type | Serrated |
| Maximum Static Gripping Force (Lb.) | 9700.00 (3 Jaw); 7275.00 (2 Jaw) |
| Maximum Jaw Capacity (Decimal Inch) | 7.8700 |
| Piston Stroke Length (Decimal Inch) | 0.7090 |
| Maximum Drawbar Pulling Force (Lb.) | 4409.00 (3 Jaw); 3306.00 (2 Jaw) |
