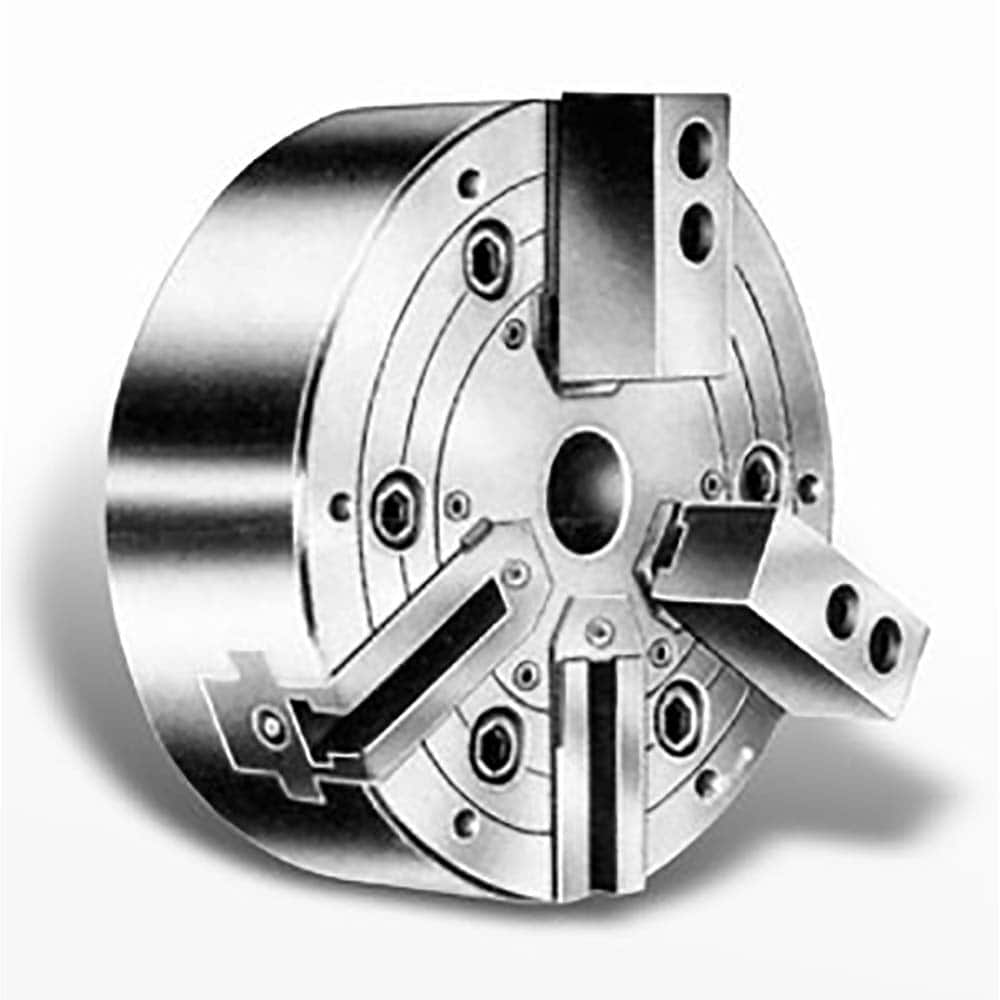

Atlas Workholding - 8" Diam A-6 Lathe Chuck
Item #: 57585200
Brand: Atlas Workholding
Model #: PAFH8-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 8.2600 |
| Mount | A-6 |
| Through-Hole Diameter (Decimal Inch) | 1.3780 |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.1810 |
| Maximum Static Gripping Force (Lb.) | 7275.00 (2 Jaw); 9700.00 (3 Jaw) |
| Maximum Jaw Capacity (Decimal Inch) | 7.8700 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3780 |
| Piston Stroke Length (Decimal Inch) | 0.7090 |
| Maximum Drawbar Pulling Force (Lb.) | 3306.00 (2 Jaw); 4409.00 (3 Jaw) |
| Maximum RPM | 3000 |
