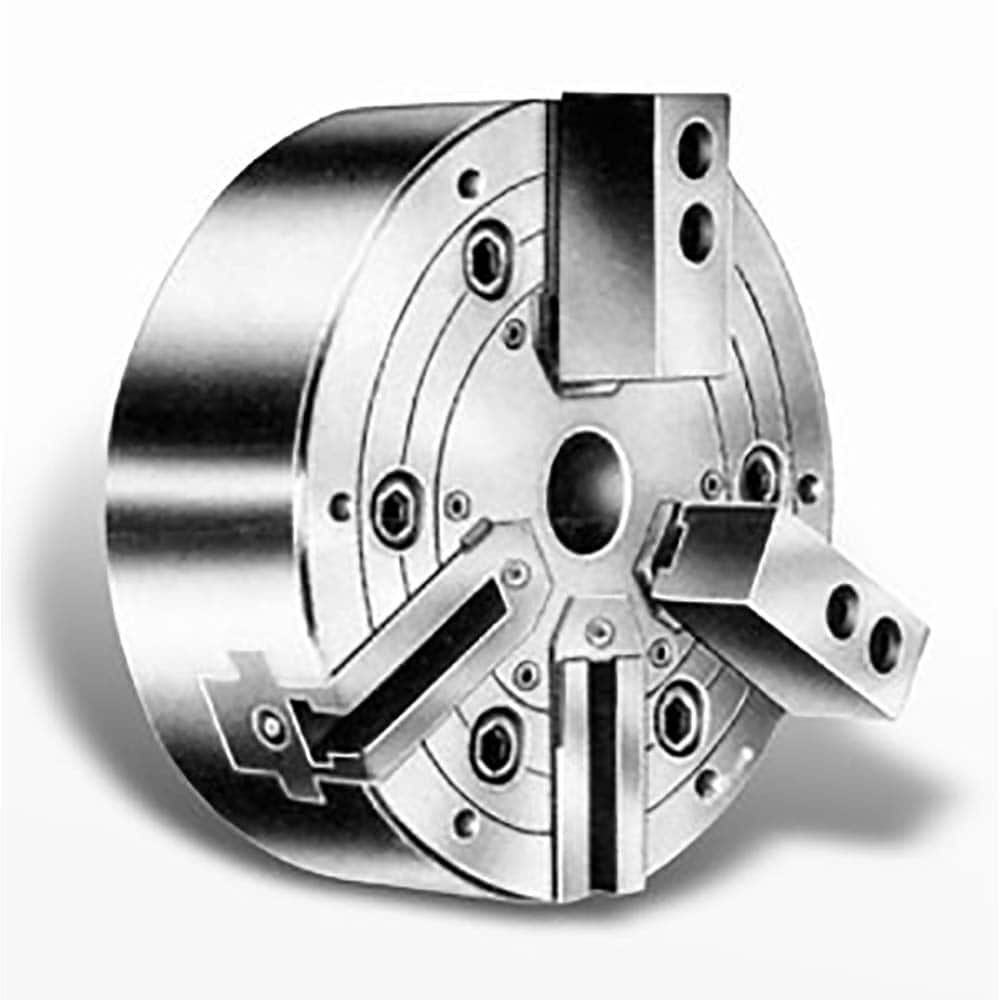

Atlas Workholding - 12" Diam A-11 Lathe Chuck
Item #: 57585184
Brand: Atlas Workholding
Model #: PAFH12-A11
Product Specifications
| Chuck Diameter (Decimal Inch) | 11.9700 |
| Mount | A-11 |
| Through-Hole Diameter (Decimal Inch) | 2.1650 |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.9670 |
| Maximum Static Gripping Force (Lb.) | 11684.00 (2 Jaw); 17636.00 (3 Jaw) |
| Maximum Jaw Capacity (Decimal Inch) | 11.8100 |
| Jaw Stroke Diameter (Decimal Inch) | 0.8030 |
| Piston Stroke Length (Decimal Inch) | 1.1020 |
| Maximum Drawbar Pulling Force (Lb.) | 6613.00 (2 Jaw); 9920.00 (3 Jaw) |
| Maximum RPM | 2500 |
